High speed camera

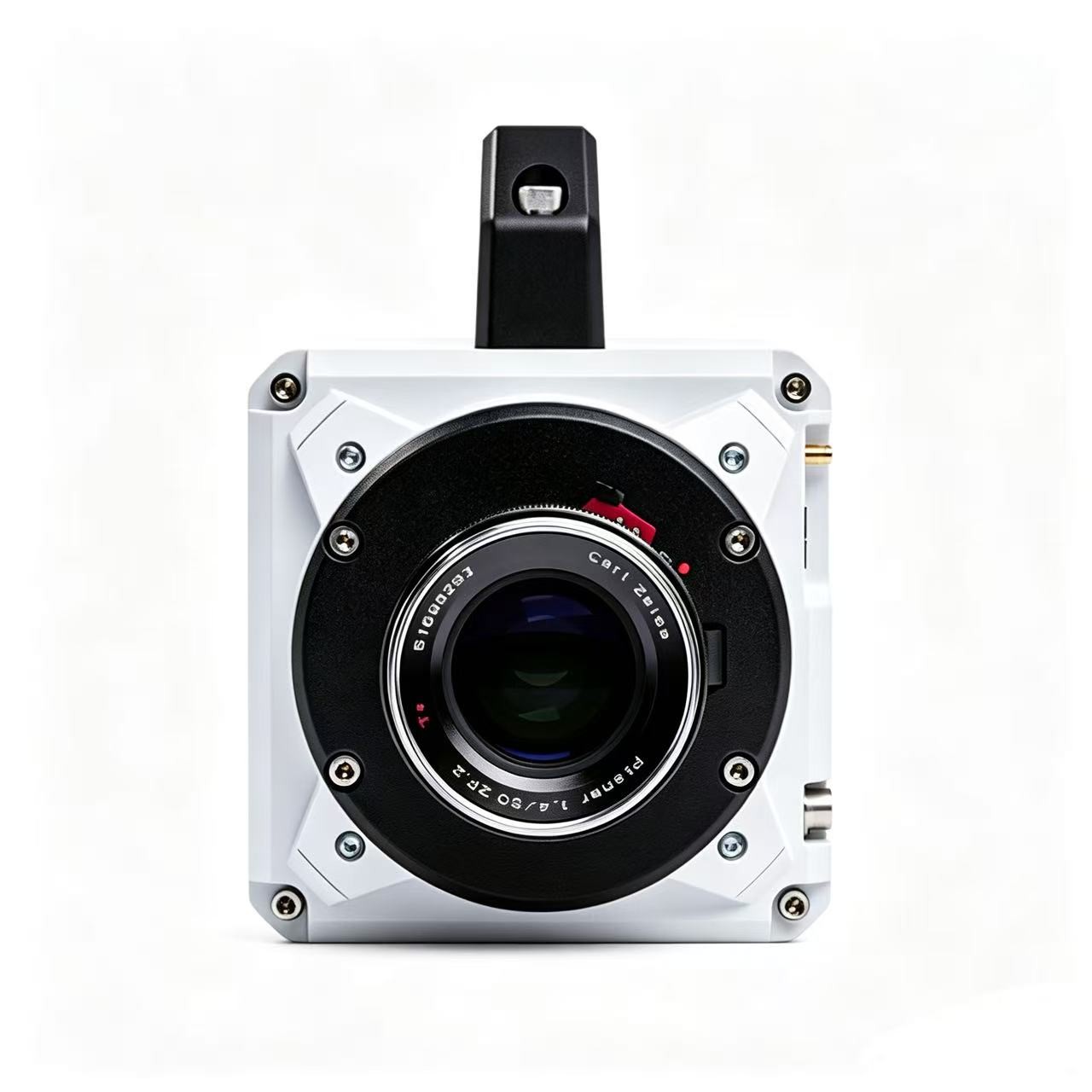

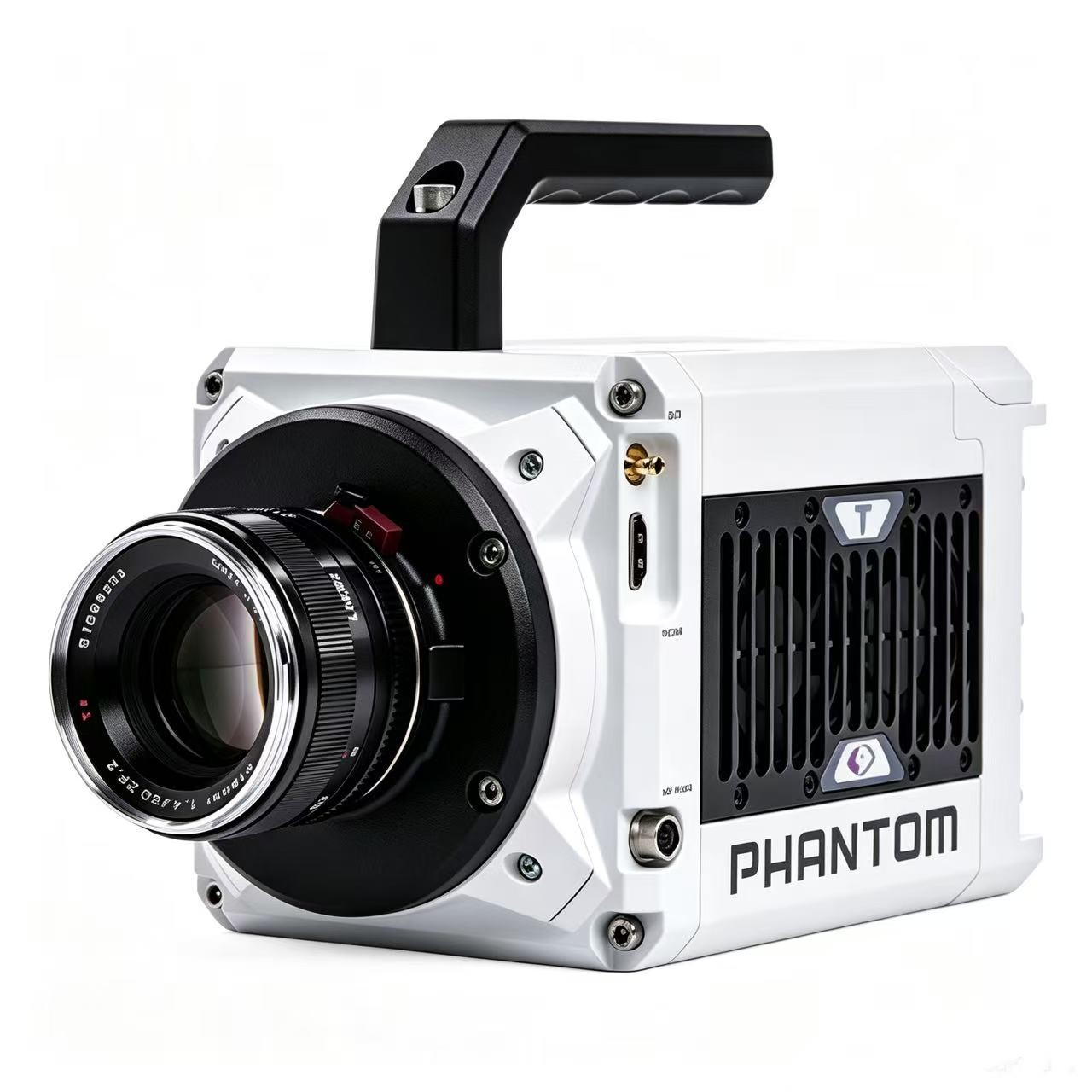

The make is Phantom. T3610 packs ultrahigh-speed frame rates and performance into a compact platform, 50% lighter than the closest equivalents. Back side illuminated (BSI) sensor technology maximizes sensitivity for sub-microsecond exposure times as often required in high-velocity testing.

• 38,040 fps at 1280 x 800
• Quantum Efficiency*
  • Mono: 84.3%; Binned 83%
  • Color: 77%
• Up to 256GB RAM
• FAST option*, 190ns min. exposure

DESIGNED FOR TRUE HIGH-SPEED APPLICATIONS

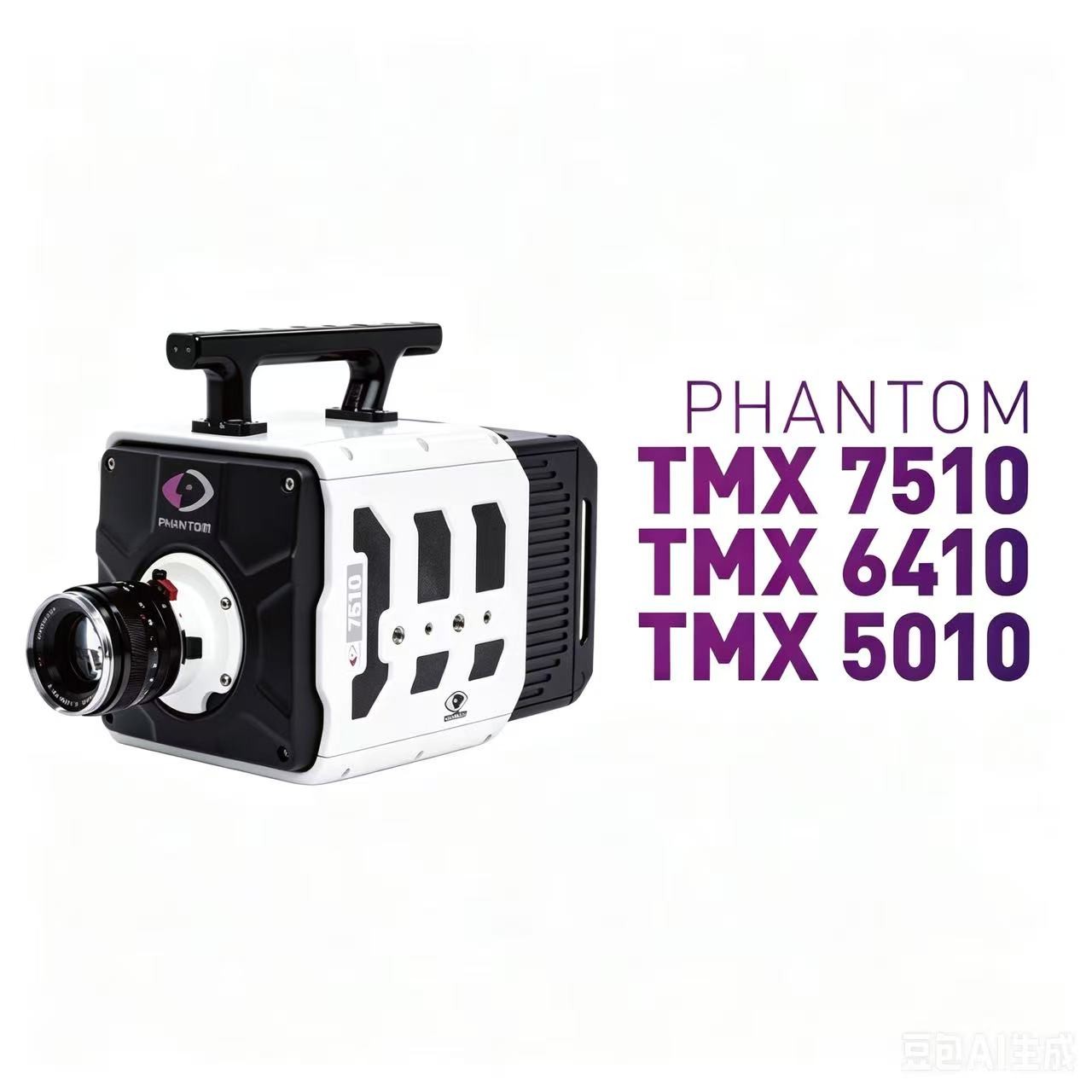

• 3 performance models offer extreme high frame rates at larger resolutions, up to 1.75 Million fps* at 1280 x 32 and 640 x 64 (TMX7510). 1.04 µs minimum exposure standard, 95ns with 95nsFAST option. The TMX7510 and 6410 also can even achieve 38ns with the 38nsFAST option. • Real data, for real results: Frame rates are actual, with no interpolation. 2 x 2 Binning Mode provides double the vertical resolution at high frame rates for added flexibility. • Very high native light sensitivity, made possible by the back side illuminated (BSI) sensor.

Key words

• Binning Mode - frame rate boost at 640 x 384 and below
• CineMag 5 Compatibility
• SDI and HDMI video outputs
• Programmable I/O - Assign and define camera signals
• 10Gb Ethernet
