Laser Doppler Vibrometer

Product Introduction

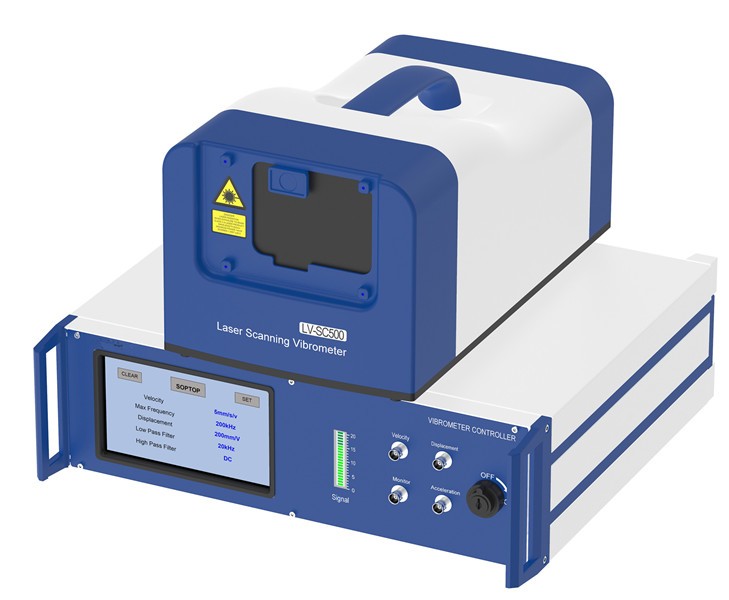

The LV-FSC500 scanning laser vivimeter measures based on the Doppler principle and adopts a non-contact measurement method. The target measurement distance is between 50mm and 30m. The device has strong anti-interference ability and extremely high resolution. It can not only accurately measure the vibration, displacement, velocity and acceleration of various objects, but also perform ODS and modal analysis.

Characteristics

1. Modular design, with the option of multiple decoders, has a wide range of applications;

2. Non-contact measurement of the vibration of the object under test;

3. The frequency range can reach 3 MHZ (expandable to 25MHz);

4. It can achieve automatic focusing;

5. There is no additional mass and it has no effect on the object being measured.

6. The maximum measurement speed range can reach 30m/s.

7. Professionalism: It can measure the displacement, velocity, acceleration and frequency of object vibration, etc.

8. ODS and modal analysis can be conducted;

9. Customizable: Appropriate measurement range and frequency range can be selected according to customer requirements for customization.

10. Complete solution: It includes optical debugging, circuit denoising, signal processing, data acquisition and software analysis functions;

11. Personalized software: Software with intelligent functions such as real-time evaluation of measurement results and real-time display of changing trends can be equipped according to customer needs.

Application field

It is widely applied in fields such as NVH, structural mechanics analysis, acoustic detection, ultrasound, and automobiles.
