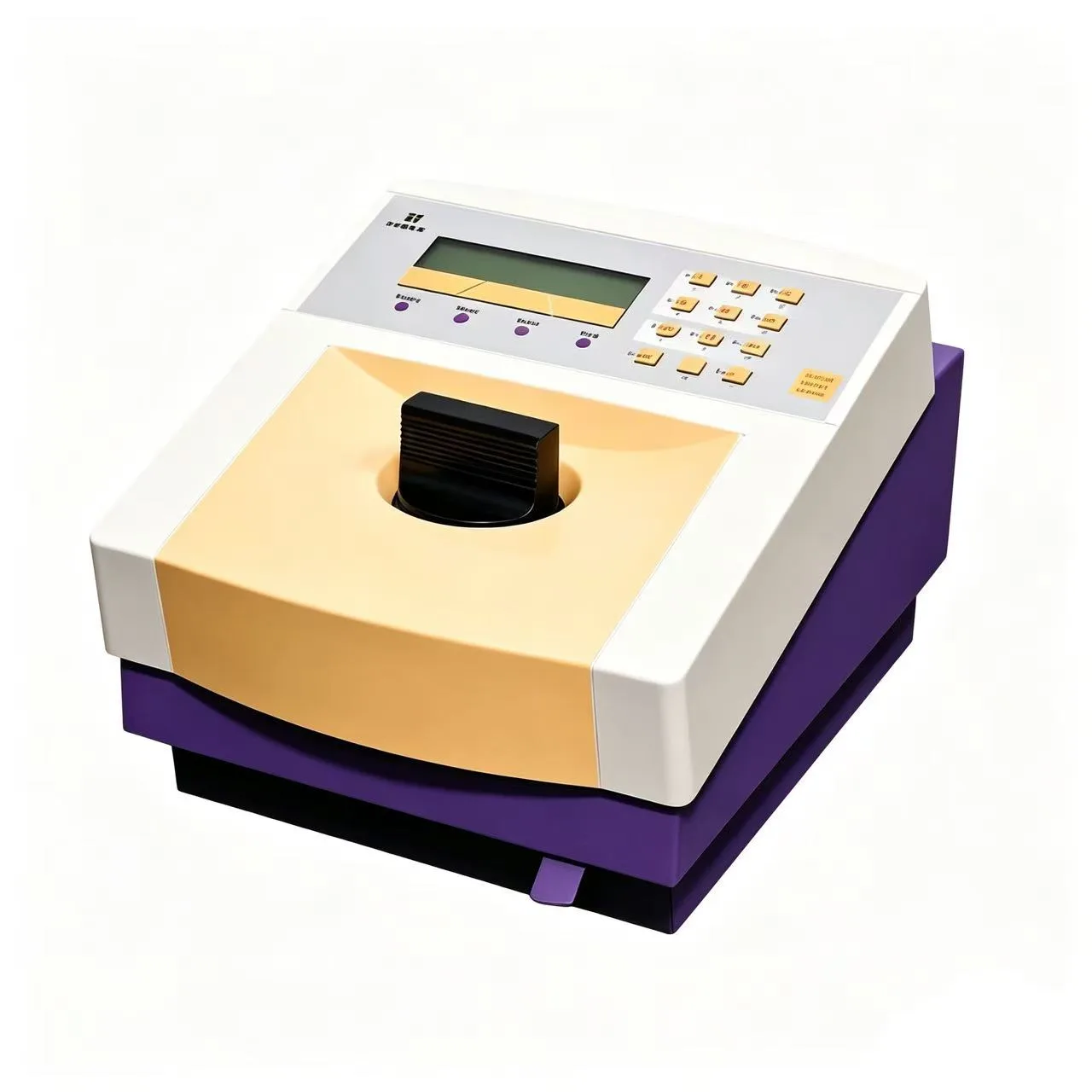

Triathler Multilabel Tester
Triathler is a portable single-sample liquid scintillation counter, which provides fast and accurate results for several life science and environmental applications. It can count all radioisotopes including tritium in a variety of sample formats. Due to its very small size and light weight, Triathler can be taken into the field to measure samples on the spot. Although compact, Triathler has many advanced features such as advanced spectrum analysis using a multichannel analyzer (MCA), Instant DPM results, single-photon luminescence counting, and optional alpha beta separation.
Features
Triathler is a single-sample counter, which provides fast and accurate results for several life science and environmental applications. It can count all radioisotopes including tritium in a variety of sample formats. Due to its very small size and light weight, Triathler can be taken into the field to measure samples on spot. Although compact, Triathler has many advanced features such as spectrum analysis using a multichannel analyzer (MCA), Instant DPM results, single-photon luminescence counting, and optional alpha/beta separation.
Optional features
• Alpha/beta separation
• Internal lead shield with low-level PMT
• External well-type NaI detector
• External planar NaI detector
• Field case with battery and/or wheels
Technical Specifications
|
LSC vials, Microtubes, Test Tubes |
|
|
Detector |
Single-Photon Counting PMT |
|
Display |
2 x 16 character alpha-numeric LCD |
|
Energy Range |
2 keV – 2000 keV |
|
Counting Time |
0.1 seconds – 99999 minutes |
|
Output |
RS-232C to PC or thermal printer |
|
Power |
110-240V AC, 12V DC |
|
Dimensions |
33 L x 25 W x 19 H cm |
|
Weight |
9 kg |
Liquid Scintillation Counting
|
Sample size |
LSC Vials, Microtubes, Test Tubes |
|
Max. Count Rate |
2,000,000 CPM |
|
Beta Efficiency |
up to 48% for 3H |
|
Direct 32P Efficiency |
up to 75% in Plastic Scintillator Adapter Tube |
Gamma Counting
|
Detector |
32 x 32 mm NaI (Tl) crystal (through-hole) |
|
Sample size |
Tubes or Vials (up to 13 mm diameter) |
|
Background Shield |
10 mm lead |
Luminescence Counting
|
Sample size |
LSC Vials, Microtubes, Test Tubes |
|
Max. Count Rate |
30,000,000 CPS |
|
Luminescence sensitivity |
< 10 amol ATP/vial |
