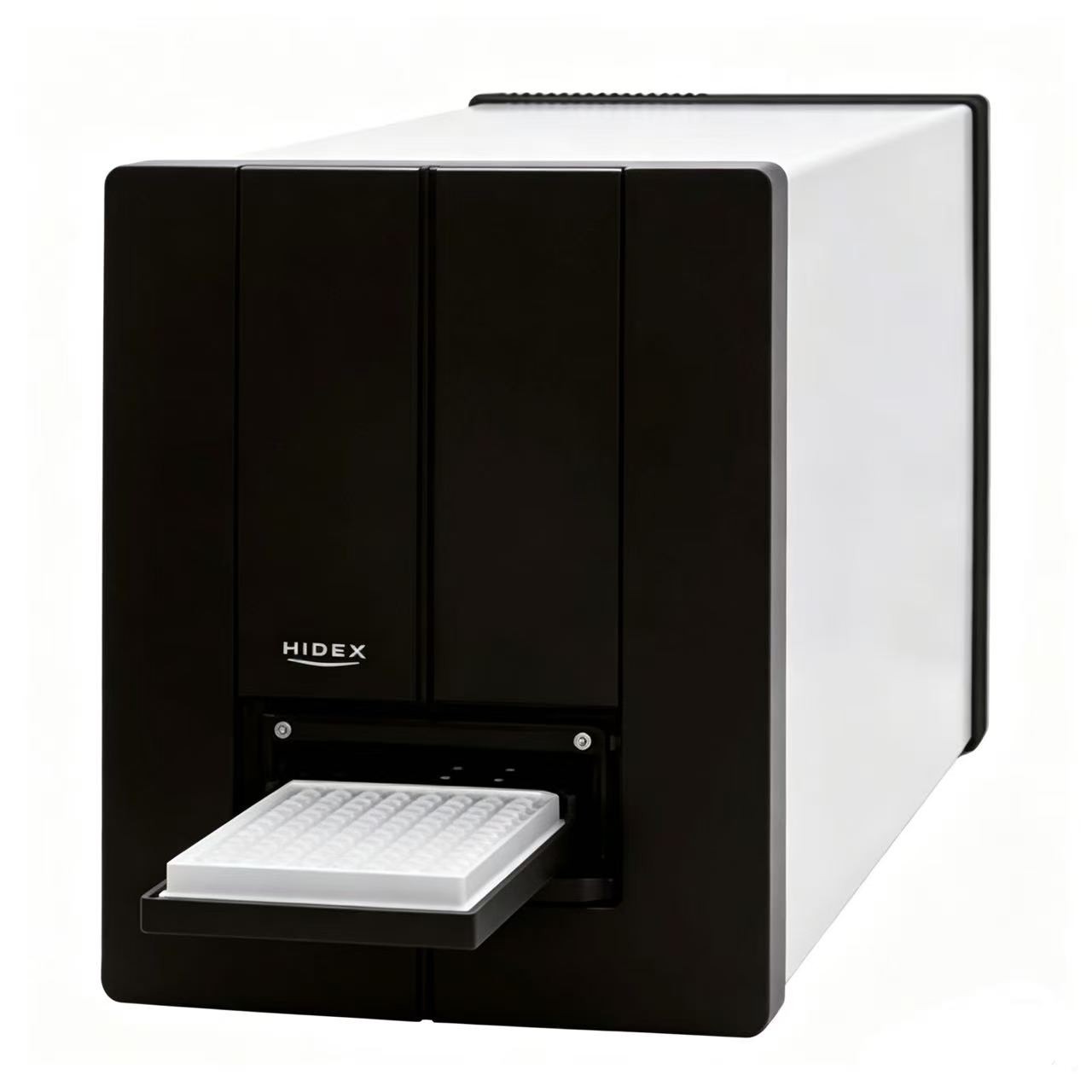

Sense Beta Plus Microplate Reader

The Hidex Sense Beta Plus microplate reader uniquely combines liquid scintillation/beta counting and all common non-radioactive detection technologies. The time resolved liquid scintillation technology reduces background to ensure best possible counting sensitivity.

Specifications
Liquid scintillation counting LSC mode beta and gamma emitters up to 2000 keV
Plate types 24, 96, 384 well plates
Counting efficiency 3H 50% ±3%, 125I > 65%, 14C > 90%
(96 B/W Isoplate, 10μL organic sample + 190 μL MaxiLight cocktail)
Background < 80 CPM
Time resolved liquid scintillation < 20 CPM
Cross-talk < 0,05 %, for 3H and 14C on PE white&black Isoplate™
Luminescence
Direct Luminescence < 6 amol ATP / 96 well (Glow)
Non-radioactive detection (NOTE: Applies only for Sense Beta Plus 425-311)
Fluorometry Top/Bottom < 0.010 fmol /< 0.05 fmol /384 well
Photometry spectral range 220 nm – 1000 nm
Filter Luminescence < 20 amol ATP / 96 well (Glow)
Time Resolved Fluorescence < 0.25 amol Eu / 96 well
Fluorescence Polarization < 1 mP SD / 96 well plate
AlphaScreen/AlphaLISA (Optional) <100 amol P-Tyr-100 Insulin Receptor Tyrosine
Other features
Plate types 1 – 1536 well (Sense Beta 425-312: 1-384 well)
Shaking Linear, Orbital, Double orbital, with adjustable intensity
Temperature Control Ambient + 2°C to 65°C
Optional features

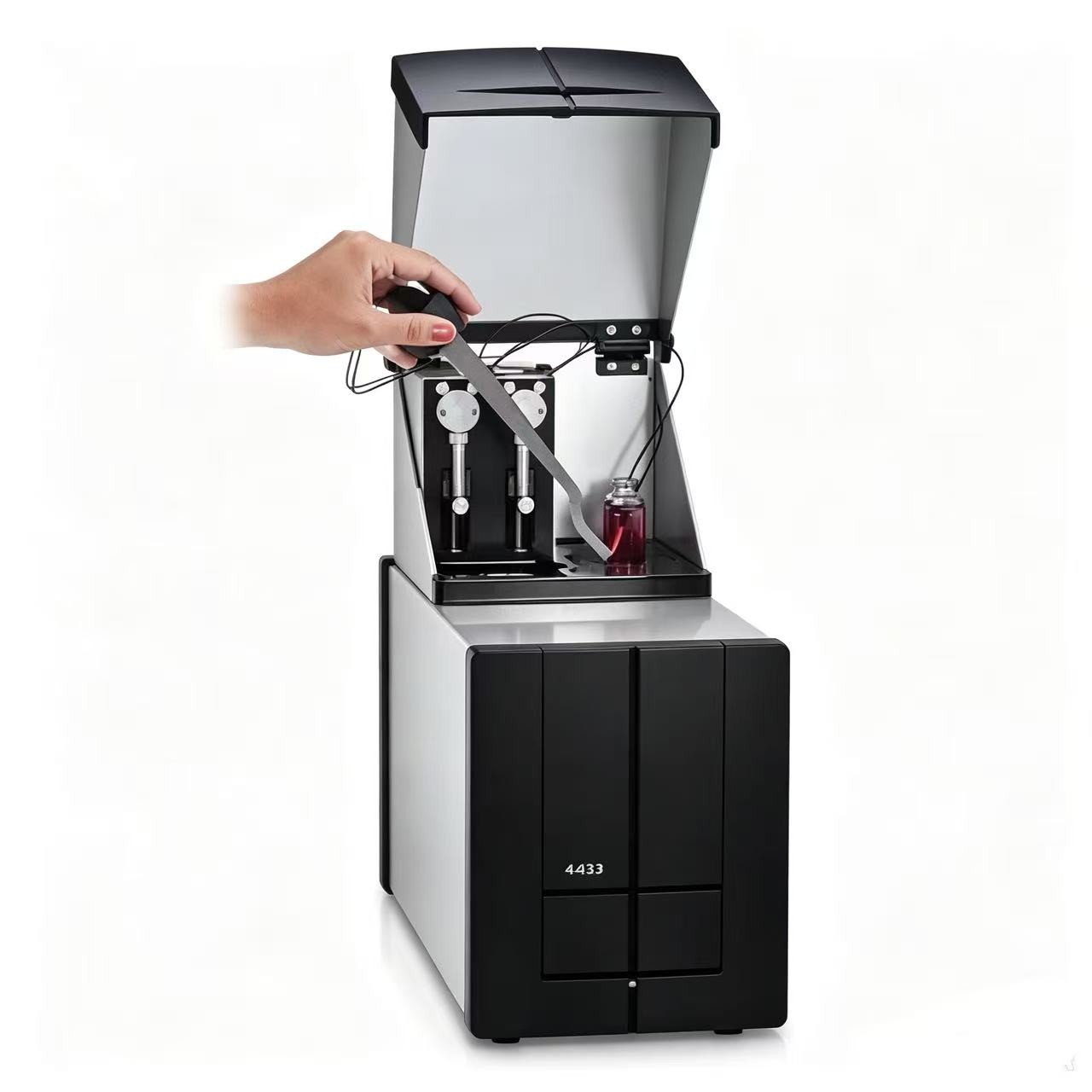

Integrated dispensers 1 or 2 channel, real-time detection with well bottom read
Gas control Digital two gas mixer (Input gas CO₂, Nitrogen)
Photometry Applies to model Sense Beta 425-312 (included by default in Sense Beta Plus 425-311)
Dimensions
Width/Height/Depth 20cm/ 28cm/ 49cm (8”/ 11”/ 19”)
Weight 13kg (29 lbs)
