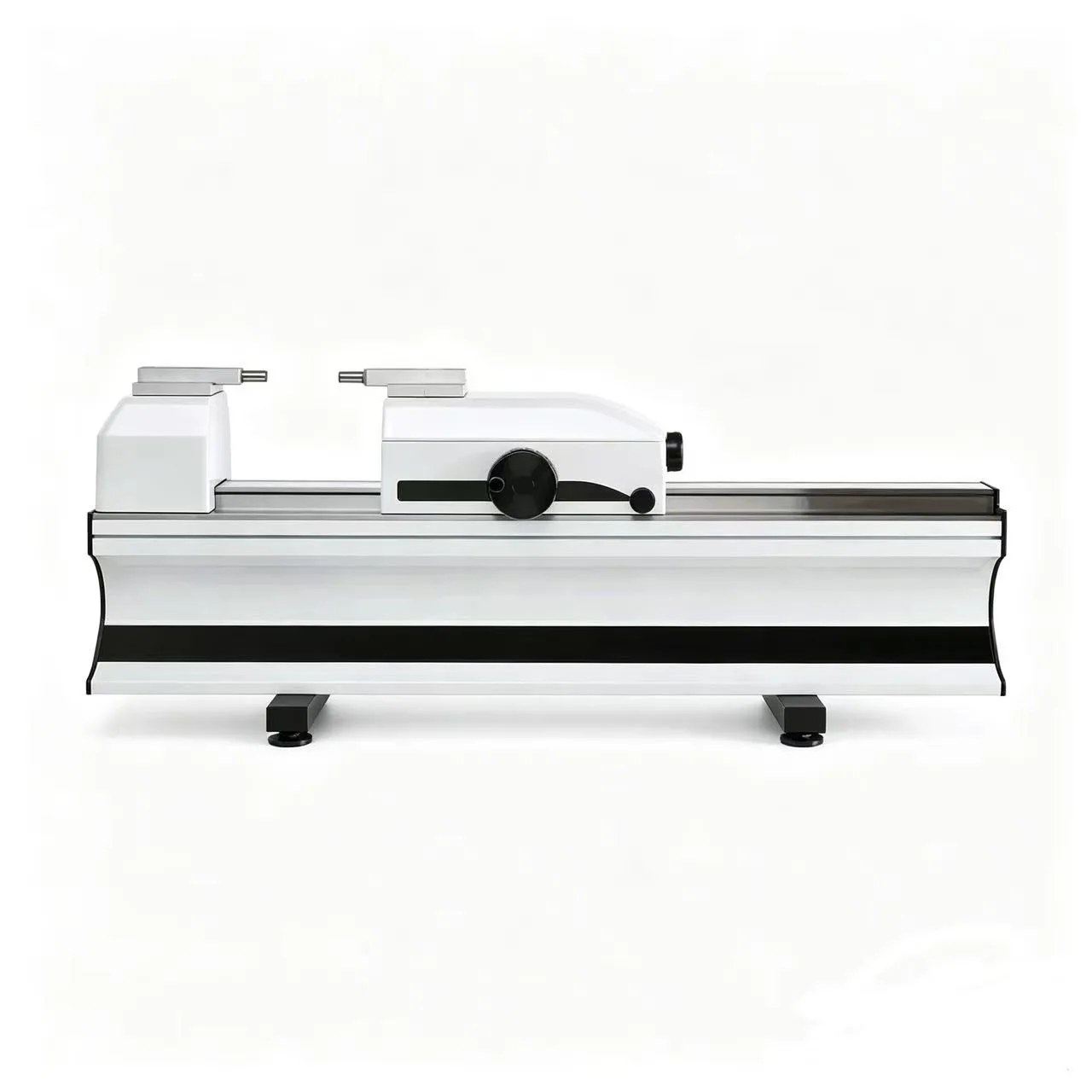

Calibration Bench HC Series

The HC series is a universal length measuring instrument designed for the calibration of fixed and variable dimension measuring means. It is a top-range solution for daily use in workshops or laboratories, combining ergonomic design, reliability, and exceptional accuracy to meet the most demanding requirements and enhance productivity in any metrology laboratory.

Computer-Controlled Precision

Each instrument is computer-controlled, featuring the exclusive WinDHL software that simplifies all measurement functions. An optional temperature compensation system and gauge inspection software can be integrated to further enhance performance.

Direct Measurement Ranges

Available in measuring ranges from 300 to 3000 mm, each bench is manufactured in one piece. All measuring ranges are direct, meaning the full range is available without intermediate adjustment or recalibration, ensuring consistent accuracy and efficiency.

Key Features

Quick displacement of the measuring carriage
Adjustable measuring force from ~1N to ~12N, continuously variable
Electronic monitoring of the measuring force
Optical and acoustic indication of the measuring position
0.1 μm resolution
Compatible with Windows 10 & 11
Wide range of display options
Complies with ISO 9000 standard requirements

Applications

The HC series is versatile and can be used for calibrating a wide range of gauges and instruments. Typical applications include:

Calibration of plain ring gauges (TA‑SU‑313, TA‑MI‑371, TA‑SU‑354, HPA‑1)
Calibration of plain plug gauges (HPA‑1, TULM6/L05, LABC‑15)
Calibration of small plain ring gauges (TA‑SU‑313, TA‑MS‑370, TEL76, TA‑SU‑354)
Calibration of threaded ring gauges (TA‑SU‑313, TA‑MS‑370, TA‑SU‑354, TUML13‑2, TA‑MS‑307)
Calibration of threaded plug gauges (HPA‑1, TEL6, 3P/0.17‑3.2‑S/6.5, LABC‑15)
Calibration of external micrometers (TA‑SU‑313, HPA‑1, TULM14)
Comparative control of gauge blocks 100‑250 mm (TA‑SU‑313, TA‑SU‑305)
Comparative control of gauge blocks > 250 mm (TA‑SU‑313, TELMA7/P, TA‑SU‑305, TA‑SU‑306)
Calibration of 2‑point internal micrometers (HPA‑1, TELMA7, TELMN7.2)

Enhance your laboratory's calibration capabilities with the HC series—where precision meets productivity.
