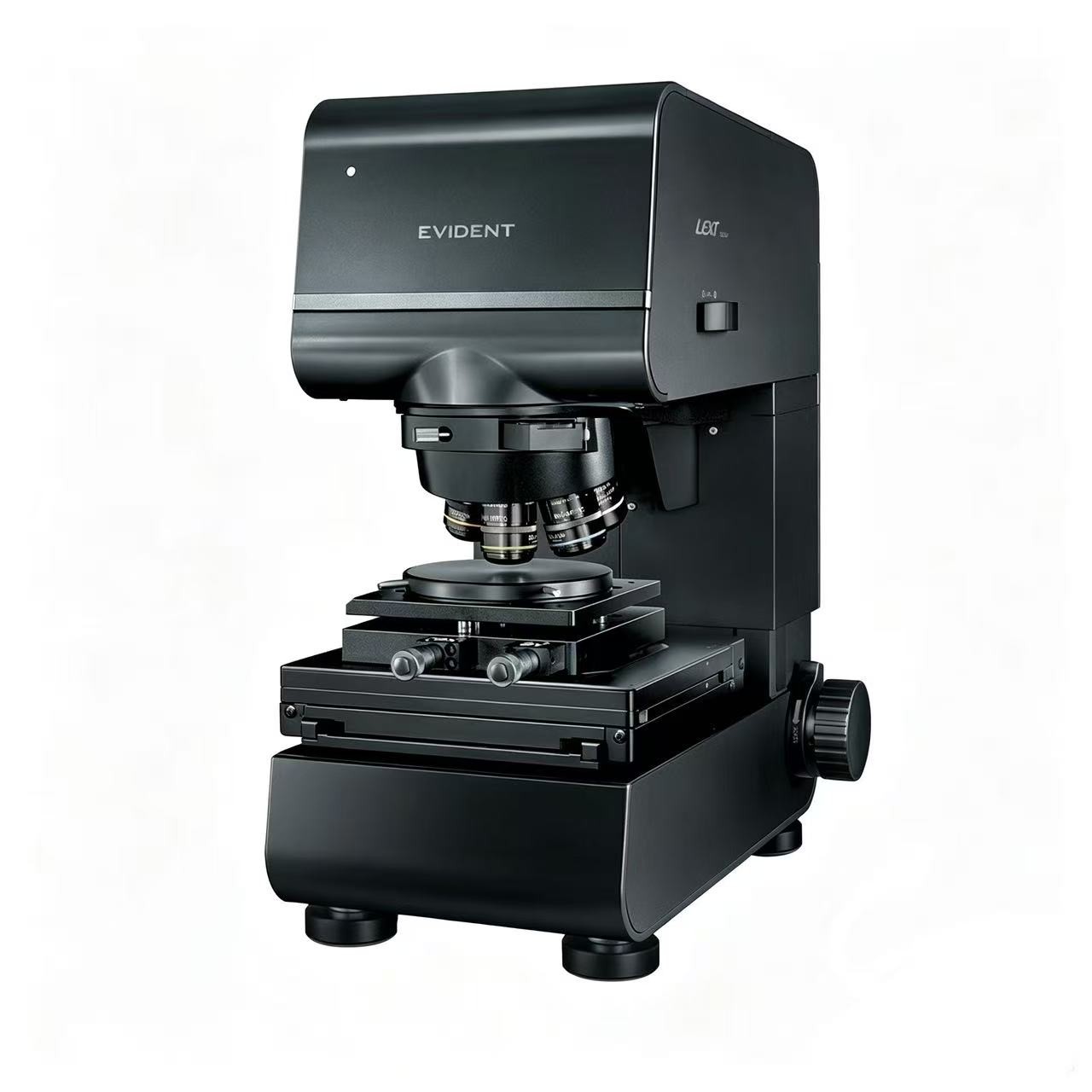

3D Optical Profilometer OLS5500
The OLS5500, a high-precision 3D optical profilometer designed for advanced surface analysis. This instrument integrates two complementary optical systems to deliver comprehensive measurement capabilities, making it an essential tool for quality control and research applications.
Dual Optical Systems for Superior Measurement
The OLS5500 combines color imaging and laser confocal technologies in a single platform. This dual-system approach allows simultaneous acquisition of color information, shape data, and high-resolution images, providing a complete characterization of surface features.
Color Imaging System
The color imaging optics utilize a white light LED source and a CMOS image sensor. This configuration ensures accurate color reproduction and clear visualization of surface details, enabling users to identify features that might be missed by monochromatic systems.
Key Features
- Integrated color and confocal measurement in one device
- High-resolution imaging for detailed surface analysis
- Accurate color reproduction for enhanced feature identification
- Non-contact measurement preserving sample integrity
- Versatile applications across various industries
Applications
The OLS5500 is suitable for measuring surface roughness, step heights, and micro-structures in fields such as semiconductor manufacturing, materials science, and precision engineering. Its dual capability streamlines workflows by eliminating the need for separate instruments.

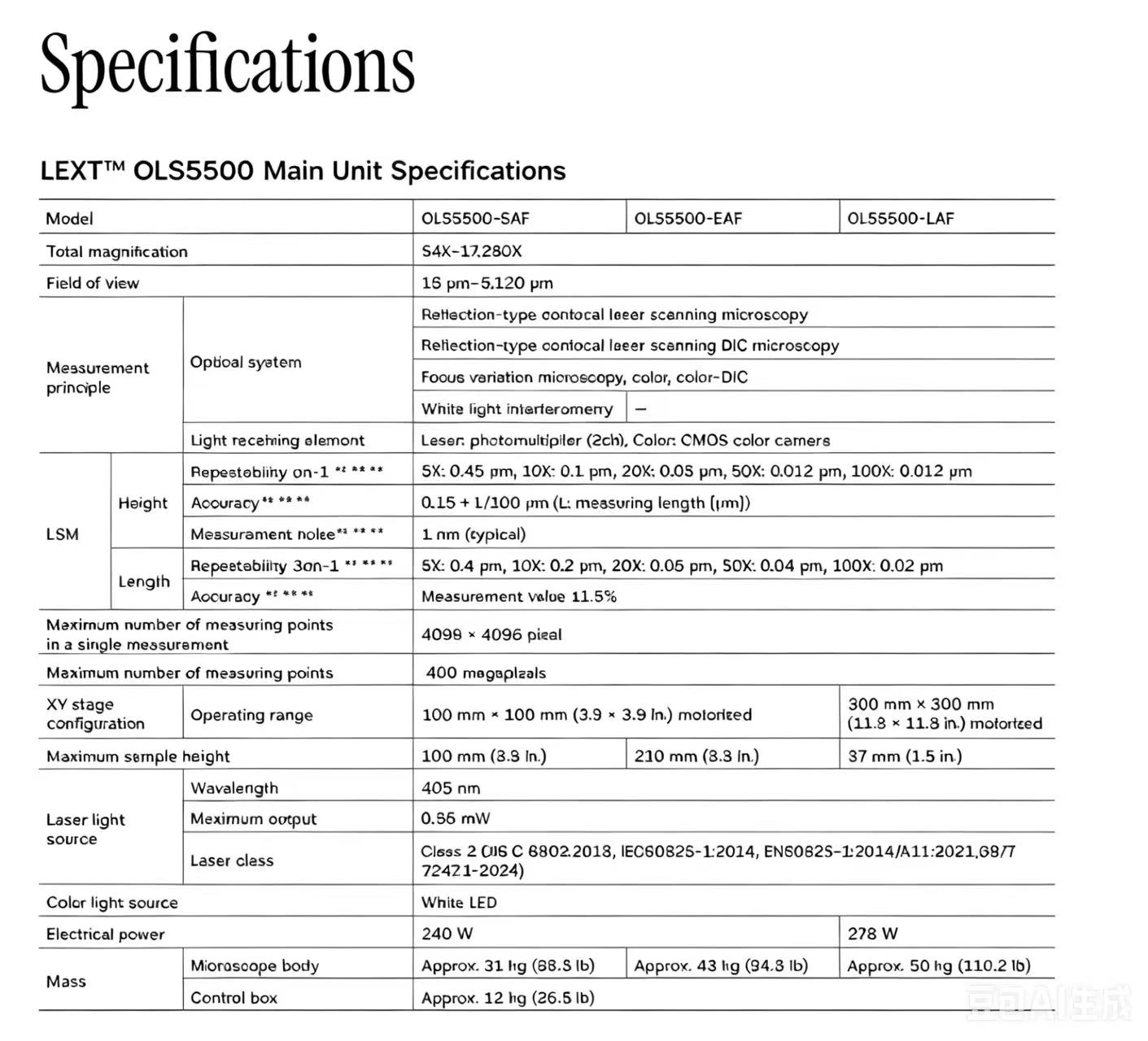

For detailed specifications and customization options, please contact Hoyang Instrument Limited directly.
