Measuring Microscope

Name: Measuring Microscope
Brand: Hoyang Instrument Limited
SKU: 42
Availability: PreOrder

Quote within 12hQuick delivery

Description

Quick Answers

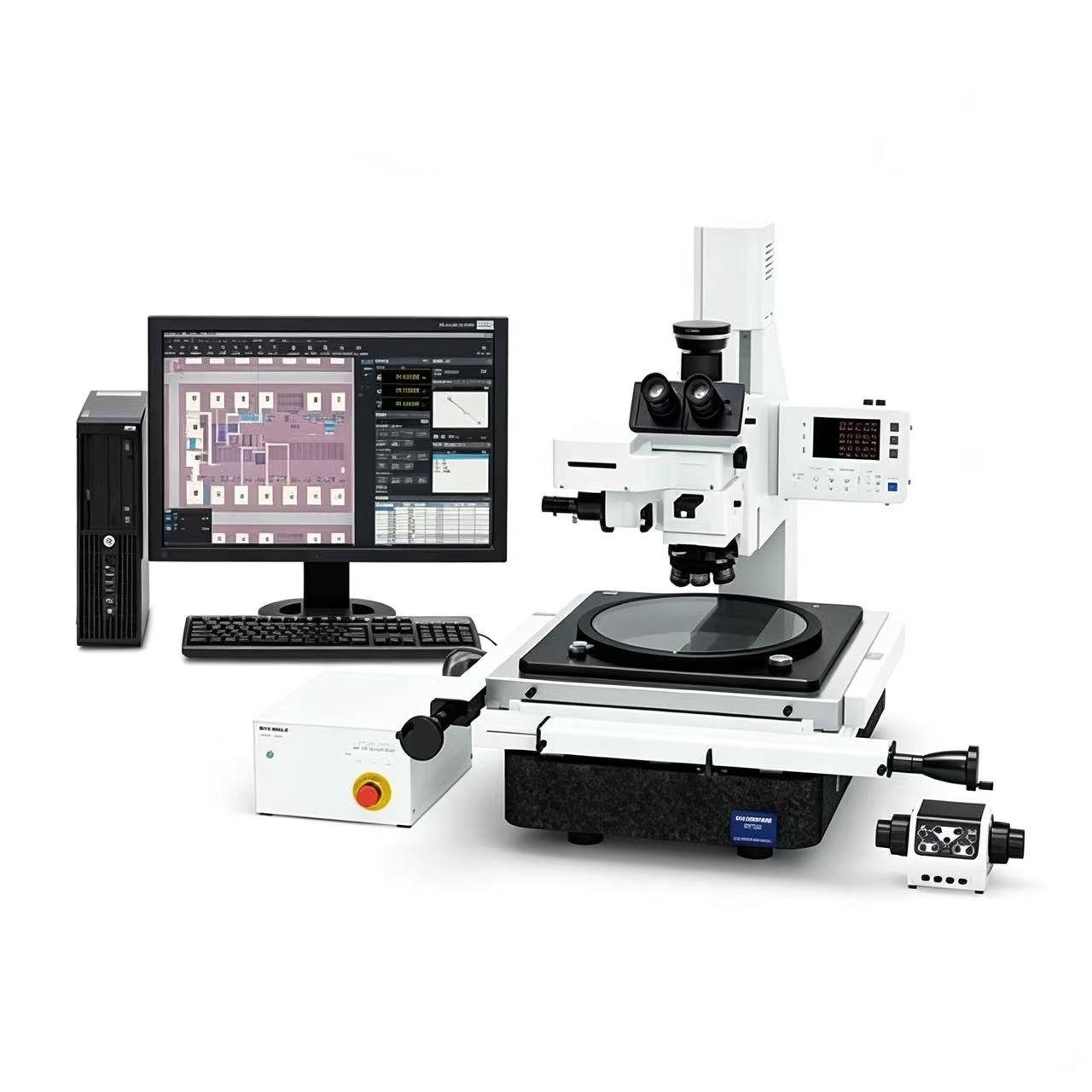

Measuring Microscope STM7 Series

The STM7 series measuring microscopes are engineered for versatility and high-performance three-axis measurement of parts and electrical components. Achieve sub-micron precision on every measurement, whether your samples are small or large, simple or complex.

Tailored to Your Measurement Needs

From novice operators to expert metrologists, the STM7 range adapts to your skill level and application. Choose from manual or motorized focus control, and configure the system with optional units to enhance productivity.

Key Features

Maximum measurement stroke: 300 mm × 300 mm for accommodating a wide variety of part sizes.
Sub-micron precision: Ensures accurate and repeatable measurements for demanding quality control.
Optional autofocus and focus navigator: Streamline measurement workflows and reduce operator fatigue.
Flexible focus control: Manual or motorized operation to match your preference and application requirements.

Built for Efficiency

Enhance your measurement throughput with optional accessories designed to simplify operation. The autofocus unit automatically brings the sample into sharp focus, while the focus navigator helps you quickly locate the correct focal plane, saving time on repetitive tasks.

Whether you are measuring intricate electronic components or large mechanical parts, the STM7 series delivers the accuracy and flexibility you need. Contact Hoyang Instrument Limited to learn more about configuring the ideal measuring microscope for your laboratory or production floor.

What is Measuring Microscope?

The STM7 series measuring microscopes from Hoyang Instrument Limited are precision optical instruments designed for three-axis measurement of parts and electrical components. They offer sub-micron accuracy and a maximum measurement stroke of 300 mm × 300 mm, accommodating a wide range of sample sizes. The series provides flexible focus control options (manual or motorized) and optional accessories like autofocus and focus navigator to enhance measurement efficiency.

Applications

Quality control and inspection of precision machined parts
Measurement of electronic components and circuit boards
Metrology in tool and mold making
Verification of dimensional accuracy in manufacturing processes
Research and development in materials science and engineering

FAQ

What is the maximum measurement stroke of the STM7 series?

The STM7 series offers a maximum measurement stroke of 300 mm × 300 mm, allowing for measurement of a wide variety of part sizes.

What precision can be achieved with the STM7 measuring microscope?

The STM7 series provides sub-micron precision, ensuring accurate and repeatable measurements for demanding quality control applications.

Are there options for focus control?

Yes, the STM7 series offers both manual and motorized focus control options, allowing users to choose based on their preference and application requirements.

What optional accessories are available for the STM7 series?

Optional accessories include an autofocus unit and a focus navigator, which help streamline measurement workflows and reduce operator fatigue.

Can the STM7 series be used for measuring electronic components?

Yes, the STM7 series is suitable for measuring intricate electronic components as well as larger mechanical parts, thanks to its precision and flexible configuration.
