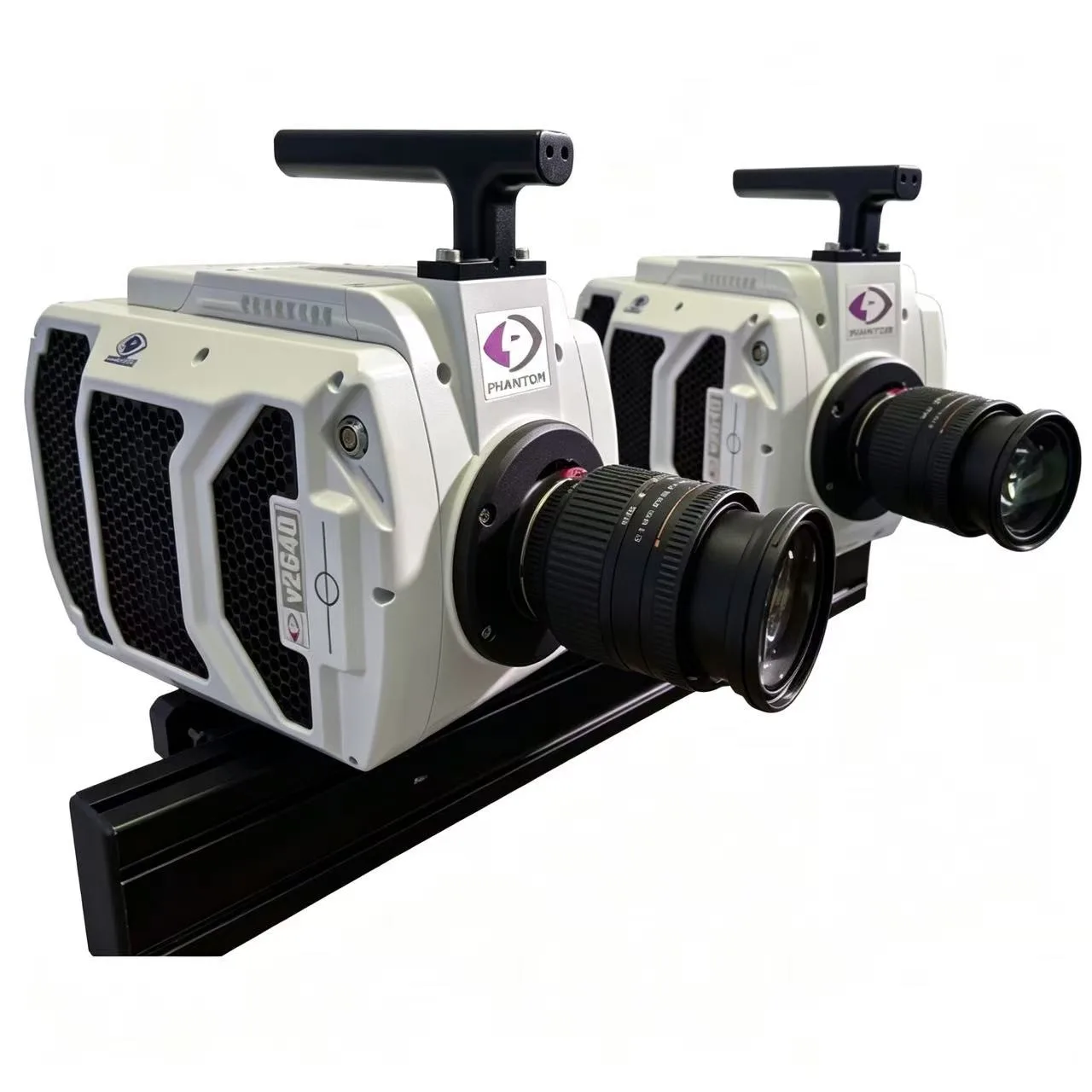

VIC-3D™ HS High-Speed Measurement System
The VIC-3D™ HS is a turnkey, non-contact, full-field measurement system based on Digital Image Correlation (DIC) technology. It measures and visualizes the three-dimensional shape, displacement, and strain of a specimen's surface during static and dynamic tests.
Key Features
- Acquires full-field 3D displacement and strain data at every measurement point on the specimen surface.
- Non-contact optical measurement method, suitable for specimens of various sizes and materials.
- Configurable for quasi-static and dynamic test events.
- Turnkey system configuration includes software, hardware, training, and technical support.
Optional Configurations
- Measurement setups can be tailored based on test speed, field of view, and research requirements.
Typical Applications
- Material testing, deformation analysis, and structural validation.
- High-speed and dynamic event measurement.
- Research and engineering applications requiring full-field strain visualization.
Technical Specifications
| Item | Description |
|---|---|
| Model | VIC-3D™ HS |
| Measurement Method | Digital Image Correlation (DIC) |
| Measurement Output | 3D shape, displacement, and strain |
| Measurement Type | Non-contact full-field optical measurement |
