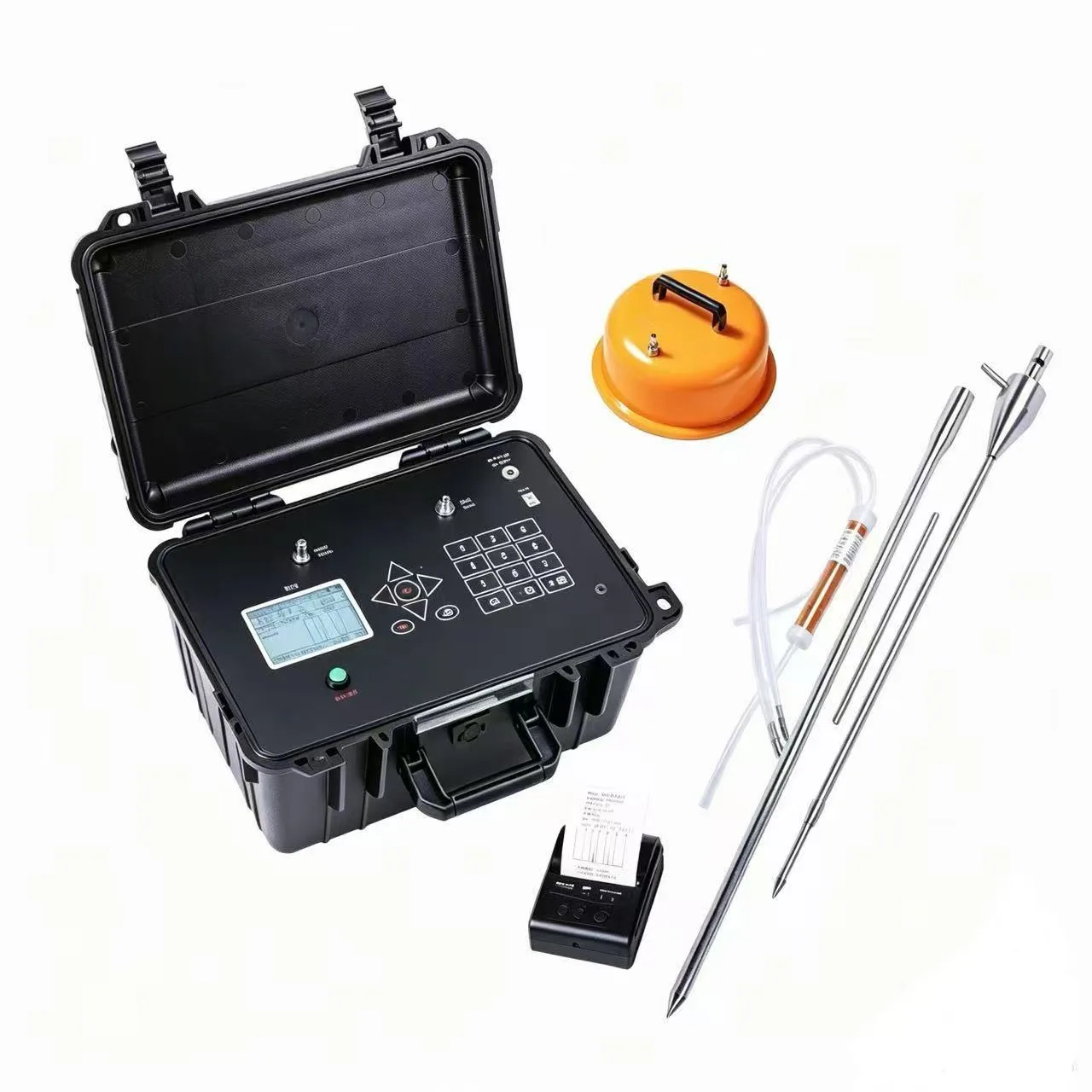

Electronic Radon Monitor
Application
Fields Measure radon concentration in ambient air, soil and water and radon exhalation rate in soil and building materials. It can be applied in geological prospecting, radiation protection, nuclear accident monitoring, radiation dose assessment, earthquake prediction and teaching, etc.
Instrument Characteristics
Detector: PIPS detector.
Energy spectrum analysis of electrostatic collection of pumping gas.
High α energy spectrum resolution, high sensitivity and real-time display of spectrum data.
Fast measuring response and short recovery time.
Constant flow sampling. Small size, light weight, suitable to carry.
Low power consumption, AC/DC double use.
With USB data transfer interface, equipped with a Bluetooth printer.
Specifications
1. Measuring Objects: Rn-222(Radon), Rn-220(Thoron)
2. Sensitivity: ≥ 0.017 cpm/[Bq·m-3] (0.63 cpm/[pCi/L])
3. Background count rate: ≤ 0.03 cpm
4. Detection Limit: ≤ 2 Bq/m3
5. Measuring Range Radon in air: (2 – 999999) Bq/m3 Radon in soil: (300 – 999999) Bq/m3 Radon in water: (0.002 – 999.999) Bq/L Radon exhalation rate: (0.001 – 33.000) Bq/[m2·s]
6. Measurement uncertainty: ≤ 20% (K=2) (Radon chamber concentration ≥ 2000 Bq/m3, Temperature is 25°C: ≤ 10%)
7. Stability: RE ≤ 10% (8h)
8. Operating Mode: Single point, continuous and scan measuring
9. Data Storage: 10000 sets of measured results and energy spectrum data
10. Way to Take Gas: Active pump-priming
11. Power Supply: Lithium-ion rechargeable battery/AC, DC power can support the instrument to work continuously for 72h.
12. Monitor: LCD display
13. Operating Environment Temperature: (-10 – +50)°C Relative Humidity: ≤ 90% (+40°C)
14. Dimensions and Weight: Host: (276×246×283) mm 3.8 kg
Related Products

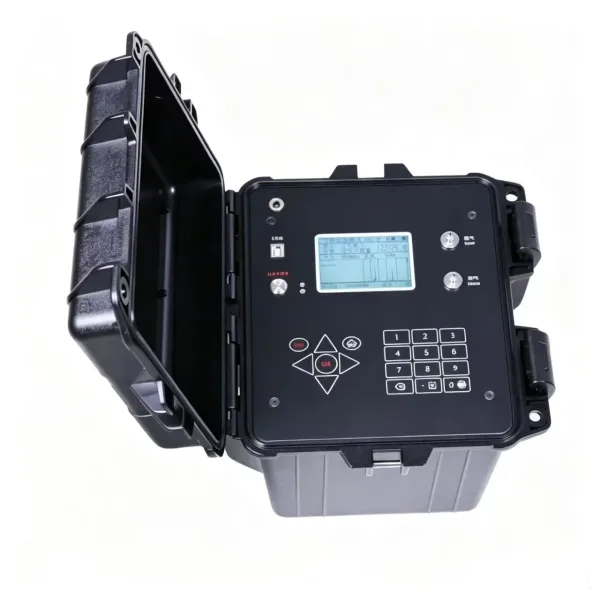

α Spectrum Radon Gas Monitor

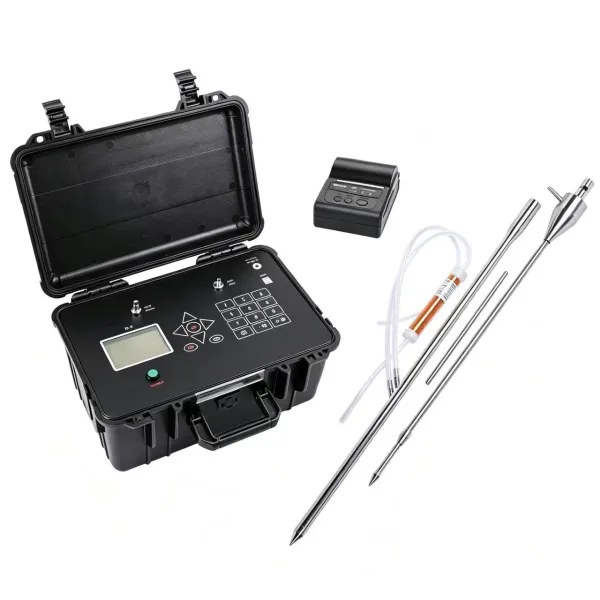

Item No.Hy-001Environmental Radon Monitor

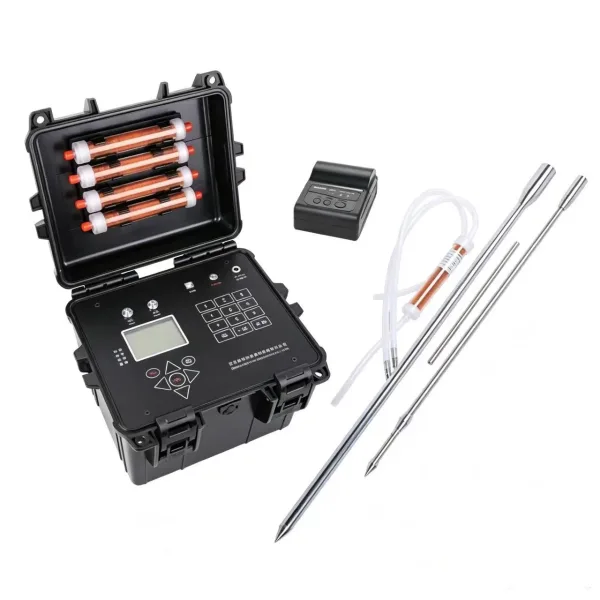

Item No.HY-004RaA Radon Monitor
