Portable γ - ray Spectrometer - Image 1

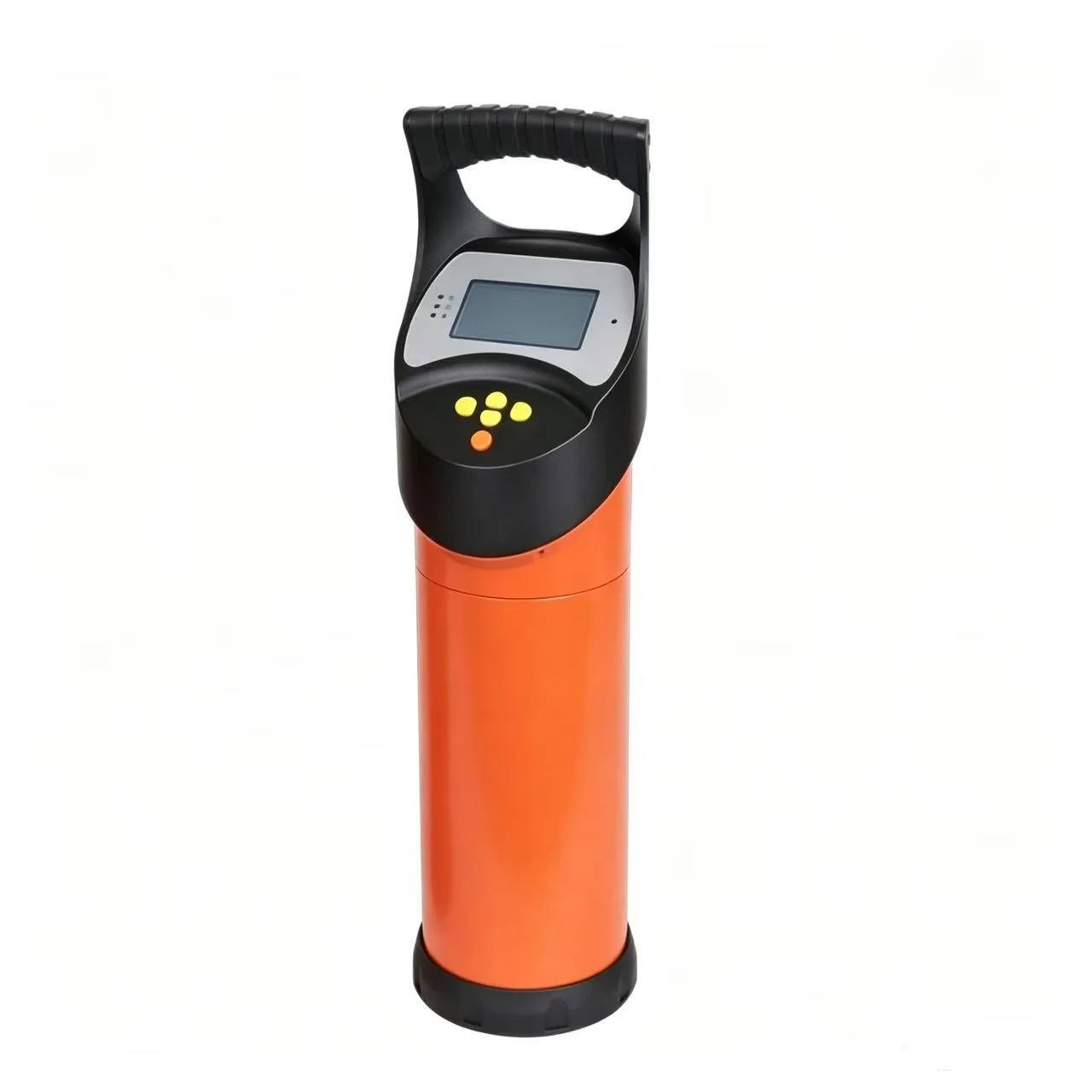

Portable γ - ray Spectrometer

Get a Quote
Quote within 12hFactory direct
Save to favoritesView wishlist

Description

Application Fields

Exploration of uranium, thorium, potassium, oil, coal, gold and many other minerals Radioactive geological mapping Radiation environmental monitoring Radioactivity detection of building materials

Instrument Characteristics

 Configured with NaI (Tl) crystal detector. Automatic spectrum stabilization using natural radioactive peaks (U, Th, K) .

 Advanced spectral resolution algorithm makes the analysis results more accurate.

 Three types of measuring modes: Continuous, Timing and Scan.

Display measurement results by count rate or content, with radioactive intensity alarm.

 Data transmission: standard USB interface, mobile app, Bluetooth printing.

 IP65 waterproof and dustproof design,GPS positioning.

Specifications

1. Detector: φ3"×3" NaI(TI)

2. Energy Resolution: ≤ 7.5% (137Cs)

3. Measuring Range of Content eU: (1 – 1000) ×10-6 eTh: (2 – 1000) ×10-6 K : (0.2 – 100) ×10-2 ∑ : (2 – 1000) ×10-6

4. Channels: 1024

5. Accuracy(MPE) eU: ±7%, eTh: ±7%, K: ±12%

6. Repeatability: ≤ 8%

7. Stability: ≤ 8% (8h)

8. Power Li-ion rechargeable battery can continuously work for 20h. Equipped with special charger.

9. Operating Environment Temperature: (-10 – +55)°C Relative Humidity: ≤ 90% (+40°C)

10. Storage Capacity: 8000 sets of measured results

11. Monitor: technical grade four-gray LCD monitor

12. Dimensions and Weight (φ110×440) mm 4.7 kg
