RaA Radon Monitor - Image 1

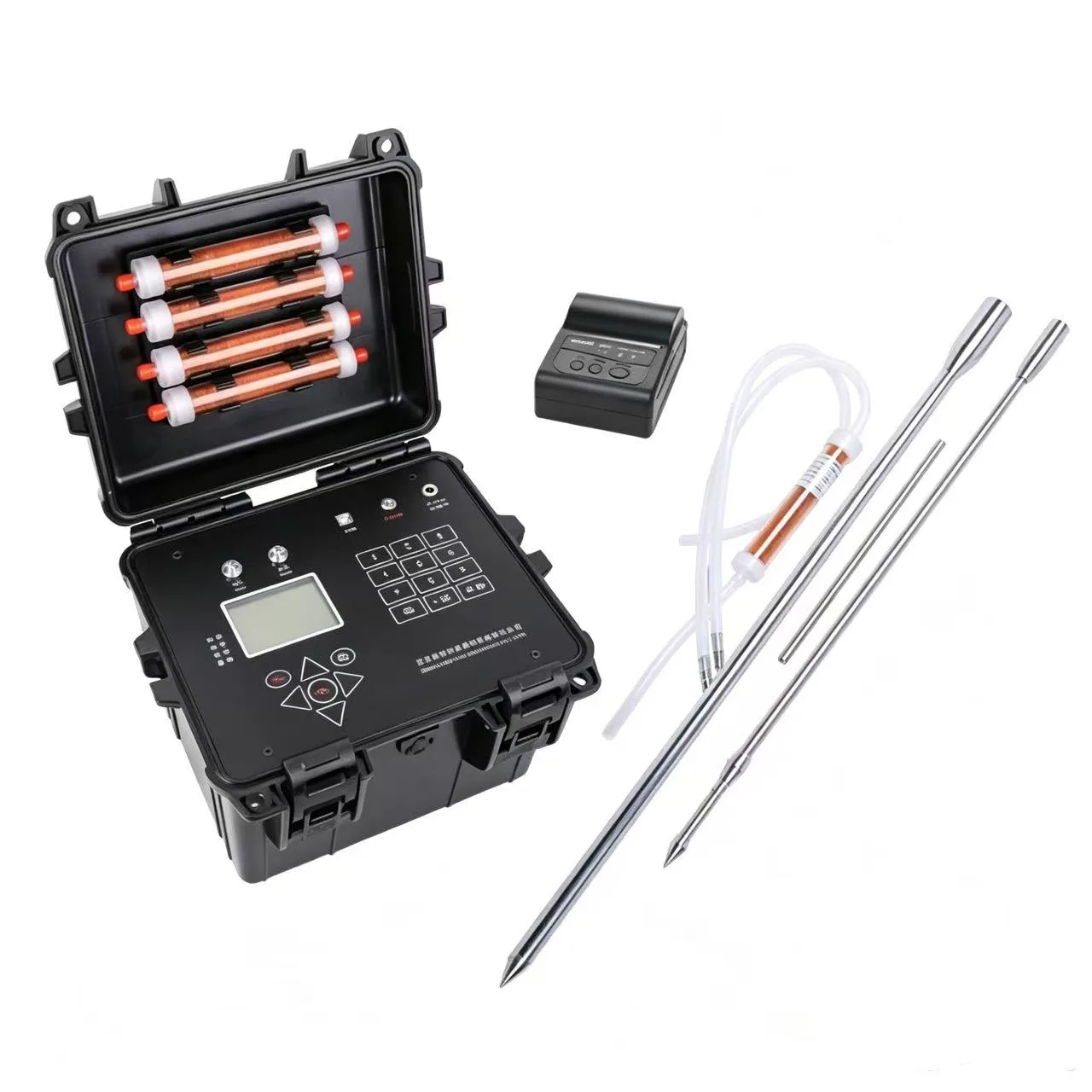

RaA Radon Monitor

  • Item No.HY -002
Get a Quote
Quote within 12hQuick delivery
Save to favoritesView wishlist

Description


Application Fields

Geological prospecting by measuring radon concentration in soil or water. and it can also be applied in areas such as soil radon detection in construction engineering, locating underground water sources, earthquake forecasting, radiation protection, and teaching, etc.


Instrument Characteristics

* RaA instant radon measurement method, short time and high efficiency.

* PIPS detector, with high resolution and real-time display of energy spectrum.

* Automatic tape changing design, no need for manual replacement, support rewinding and repeated sampling.

* Separation design of chamber and detection, with no detector contamination and interference from thoron gas.

* Intelligent switching of gas pipeline for soil radon measurement, no need for manual plug and unplug.

* Constant flow sampling, with accurate and stable gas sampling rate.

* Industrial-grade large-capacity storage chip, with more than 100,000 safe erasures and writes.

* Data Transfer: USB, Mobile APP, Bluetooth printing.

* Small size, light weight, easy to carry.

* Low power consumption, AC/DC double use.

* Support firmware upgrade, easy to maintain.

Specifications

1. Extreme Detection Densitivity: < 246 Bq/m3

2. Detector Type: Ion-implanted passivated silicon detector (PIPS detector)

3. Detection Efficiency: η2л ≥ 40%(Diameter of the active area 241Am source≤ Φ20mm)

4. Background Counting Rate: ≤ 4cph

5. Measuring Range: (246 – 999999) Bq/m3

6. Measurement Repeatability Error: ≤ 5% (radon concentration is 3000 Bq/m3, environment humidity is 15%, temperature is 25°C)

7. Measurement Uncertainty: ≤ 20%

8. Working Mode: Dual-channel active pumping-automatic

tape changing detection system

9. Operating Mode: single and continuous mearuring

10. Collection tape one-way point counts: 265 (can be reused)

11. Data Storage: 10000 sets of data

12. Power Supply: Lithium-ION / AC, DC power can support the instrument to work continuously for more than 72h.

13. Operating Environment

Temperature: (-10 – +50)°C

Relative Humidity: ≤ 90% (+40°C)

14. Monitor: technical grade four-gray LCD monitor

15. The Host Print Data Format: date, time, number, radon concentration and statistical results.

16. Dimensions and Weight: Host: (322×269×322) mm 5.2 kg
