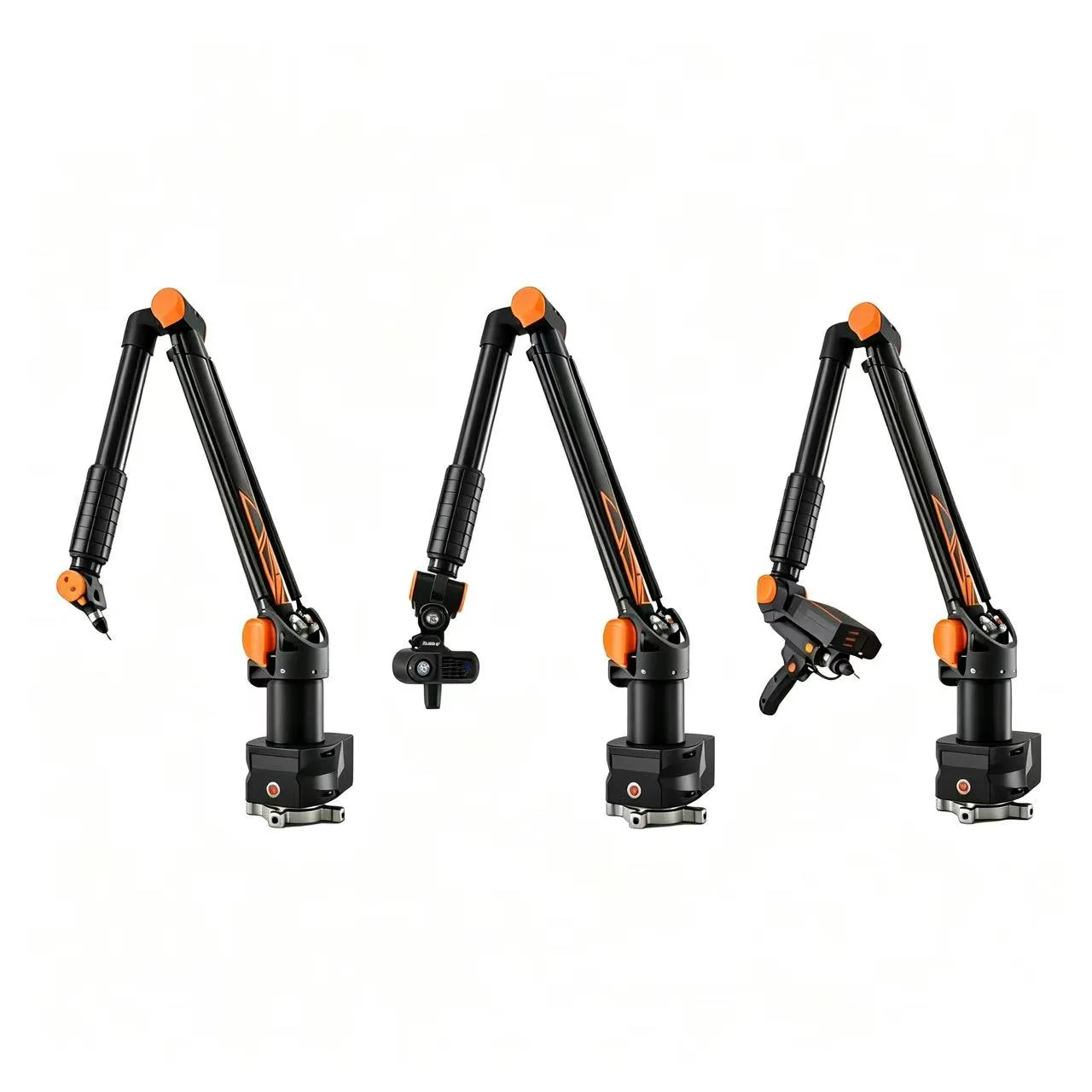

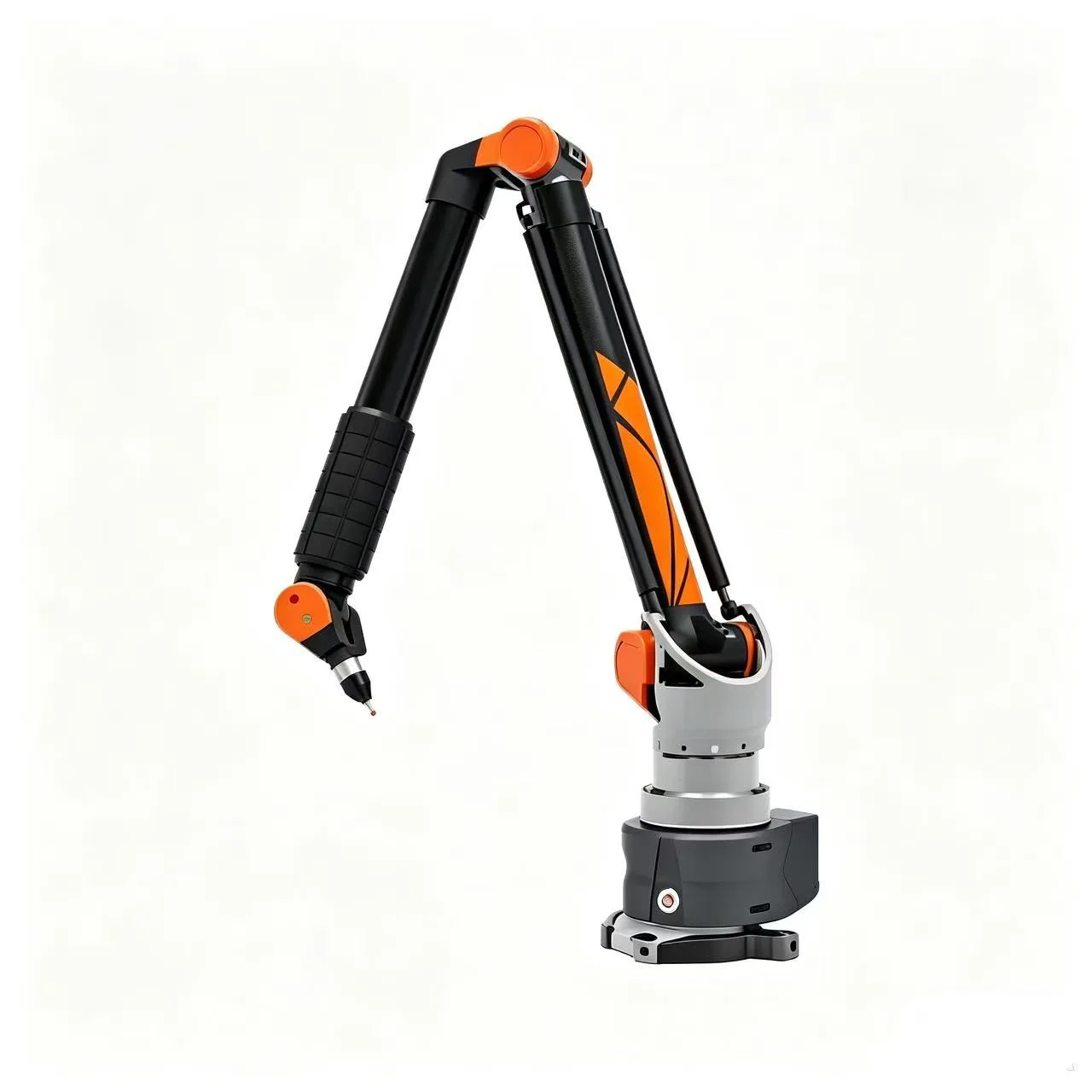

6 and 7 axes articulated measuring arm
The X arm by RPS Metrology sets a new standard in portable 3D
measurement.
Designed for high accuracy, portability and total flexibility, it
delivers high performance for inspection and reverse engineering.
From precise probing to advanced scanning, the X arm adapts to any
application, ensuring consistent and reliable results across every stage of
your workflow.
X R Model available in 6 or 7 axes configuration, is a portable measurement arm designed for different applications of the modern industry. It is the PREMIUM accuracy system offering HI-END performance in any environment
The X arm is available in 10 different sizes.
X 6 R
Measuring
range (dia.)
Maximum
extension (dia.)
2.0 - 6 axes
2.0m
2.26m
2.5 - 6 axes
2.5m
2.76m
3.0 - 6 axes
3.0m
3.26m
3.5 - 6 axes
3.5m
3.76m
4.0 - 6 axes
4.0m
4.26m
4.5 - 6 axes
4.5m
4.76m
X 6 Titan
Measuring
range (dia.)
Maximum
extension (dia.)
5.0 - 6 axes
5.0m
5.26m
6.0 - 6 axes
6.0m
6.26m
7.0 - 6 axes
7.0m
7.26m
X 7 R
Measuring
range (dia.)
Maximum
extension (dia.)
2.0 - 7 axes
2.0m
2.5m
2.5 - 7 axes
2.5m
3m
3.0 - 7 axes
3.0m
3.5m
3.5 - 7 axes
3.5m
4m
4.0 - 7 axes
4.0m
4.5m
4.5 - 7 axes
4.5m
5m
X 7 Titan
Measuring
range (dia.)
Maximum
extension (dia.)
5.0 - 7 axes
5.0m
5.5m
6.0 - 7 axes
6.0m
6.5m
7.0 - 7 axes
7.0m
7.5m
Compliant to the most demanding accuracy standard
ISO 10360-12
accuracy standards for touch probe measurements
ISO 10360-8 for
laser scanning
Extraordinary
usability and portability
SFC
counterbalance system, unique of its type, for excellent comfortable use
Overall
lightweight
Autojoint for
quick swap of probes without need to recalibrate
Very large
range of operating temperature with automatic compensation
HOT-SWAP
Battery system
Optical
feedback
QUICK-CHECK
monitor
Integrated
Wireless connection
Bluetooth or
Wi-Fi wireless onboard on every arm
Easy mount on
any support
Standard base
plate, magnetic base, mobile tripod, and customized options.
Wide range of
size available
The first
widest range of product available from 2.0 to 4.5m range, and with the TITAN
version 5,6,7 meters range
Software
compatibility:
Driver and
plug-ins available for many metrology or reverse-engineering software
solutions.
Index table
available
Superior Laser
Scanning solutions R-SCAN and H120 available
Laser fork
available
