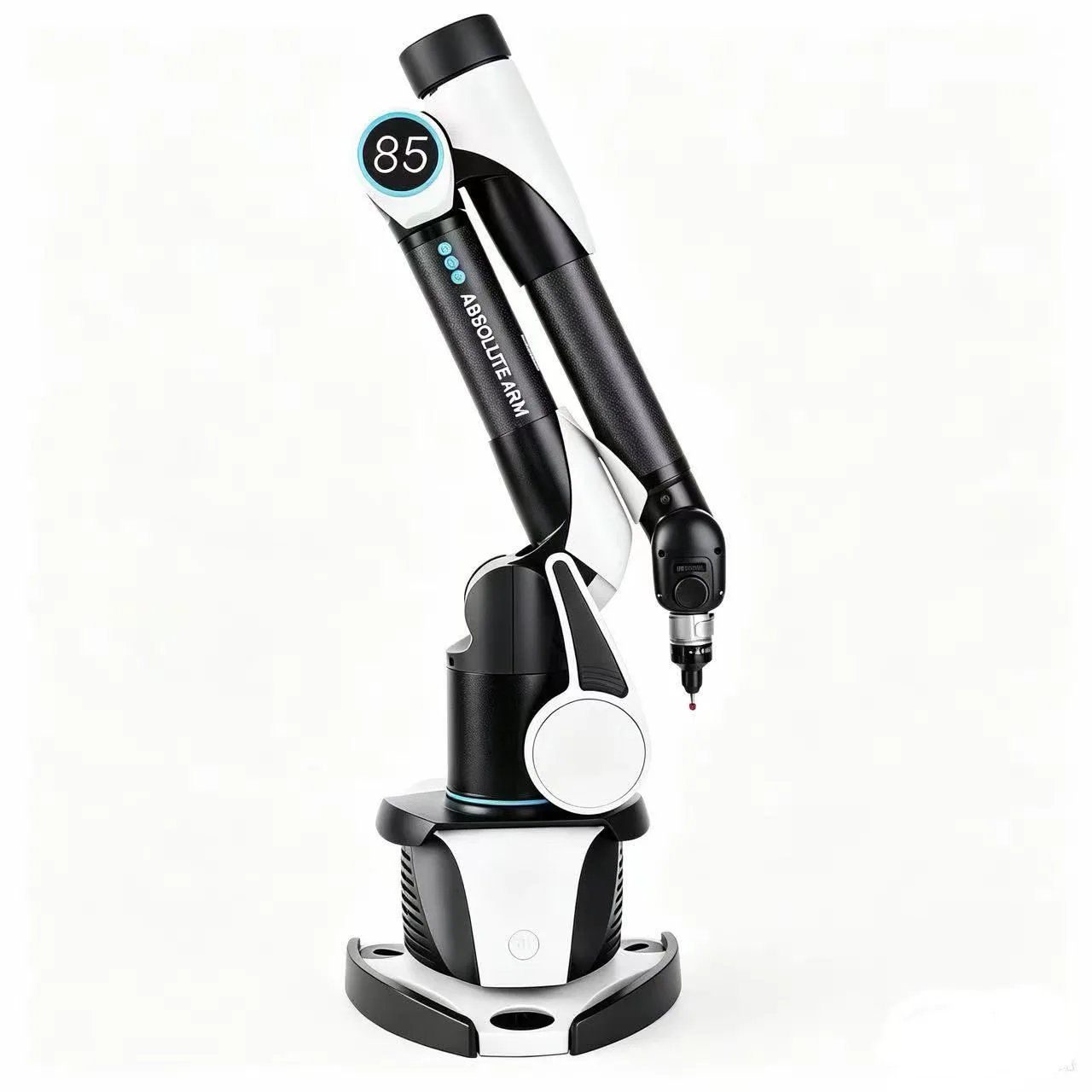

Compact absolute measuring Arm
The make is Hexagon. Compact Absolute Measuring Arm, manufactured by Hexagon, offers an exceptional measurement solution for contact measurement of small components. Designed for versatility, it can be placed on a shop-floor inspection table or directly inside a CNC machining center, elevating portability and ease of use to new heights.
The Compact is available in both Standard and PLUS accuracy versions, and it incorporates all the features of the flagship absolute arm. With absolute encoders built into the joints, the arm requires no warm-up time and is ready for use immediately upon power-up. Combined with WiFi wireless communication and battery power, the Compact delivers outstanding portability.
Equipped with an integrated base and an innovative balancing system, the Compact can be used straight out of its case—no base setup, no warm-up, no waiting. For quality control that demands fast and extremely precise measurements, the Compact brings a new experience to the portable measurement market.
The Compact Absolute Articulated Arm operates at temperatures up to 45°C and meets IP54 protection requirements, effectively resisting water and dust. This ensures reliable performance even in the most challenging environments. When paired with Hexagon's Metrology Asset Manager software, users can remotely track and monitor the device, easily checking the location and status of each arm to ensure its accuracy meets measurement requirements.
Technical Features
- 01 Supports both high-precision contact measurement and entry-level laser scanning.
- 02 Uses absolute encoders—no need for homing or warm-up on startup.
- 03 Carbon fiber arm structure ensures strength, accuracy, and thermal stability.
- 04 Lightweight operation; integrated base eliminates repetitive positioning issues.
- 05 Visual, audible, and tactile feedback with Bluetooth functionality ensures full-speed measurement in complex environments.
- 06 Certified to ISO 10360-2 and ISO 10360-12 accuracy standards.
- 07 Retains all advanced features of the Hexagon RA7 absolute arm.
- 08 First absolute arm with IP54 protection, usable at ambient temperatures up to 45°C.
- 09 Compatible with Metrology Asset Manager software for remote tracking and status monitoring.
