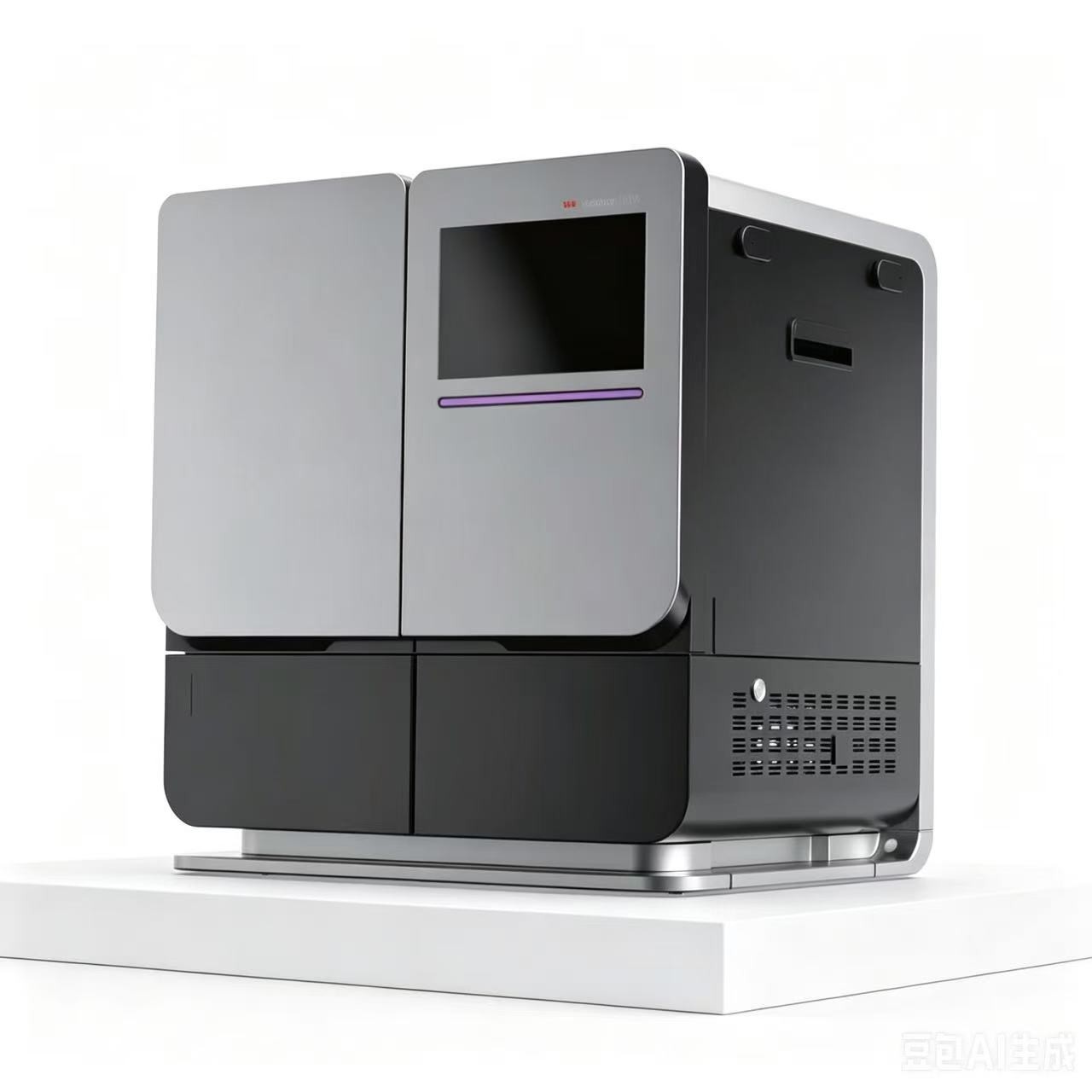

Dual channel Ion Chromatograph

The WESTINGAREA Vantion D100 Dual-channel ion chromatograph is the latest-generation intelligent dual-channel ion chromatography system, designed for simultaneous or independent analysis of anions and cations. The instrument integrates an on-board electrolytic eluent generator, continuously regenerated membrane suppressor, high-sensitivity conductivity detection, and an intelligent control system with touchscreen and remote monitoring.

Targeted at high-end analytical laboratories—including environmental monitoring, pharmaceuticals, power & nuclear industries, semiconductors, food safety, and scientific research—the Vantion D100 delivers high throughput, ultra-low background noise, and long-term operational stability, making it an ideal flagship solution for demanding ion analysis applications.

Core Technical Specifications

SKU Number 8120102
Model VDIC 100
Channels 2 (anion + cation); independent or simultaneous operation
Flow Range 0.001 – 12.000 mL/min
Max Pressure 42 MPa (PEEK flow path)
Eluent Generator Built-in electrolytic (Hydroxide / MSA / Carbonate), 0.1–100 mM, isocratic & gradient
Detector (primary) Temperature-controlled auto-ranging conductivity detector (trace – high conc.)
Suppressor Continuously regenerated electrolytic membrane suppressor (low dead volume)
Autosampler Up to 150 positions; injection 1–2000 μL; typical precision RSD <0.3%
Column Oven 10 – 65 °C, ±0.1 °C stability
Interface & Software 10″ touchscreen & dedicated chromatography workstation
Power & Safety Integrated UPS (≥2 h), leak/pressure/water-level alarms, auto shutdown
