AlphaScan Laser 3D Scanner

Item No.AlphaScan

Get a Quote

Quote within 12hQuick delivery

Save to favoritesView wishlist

Description

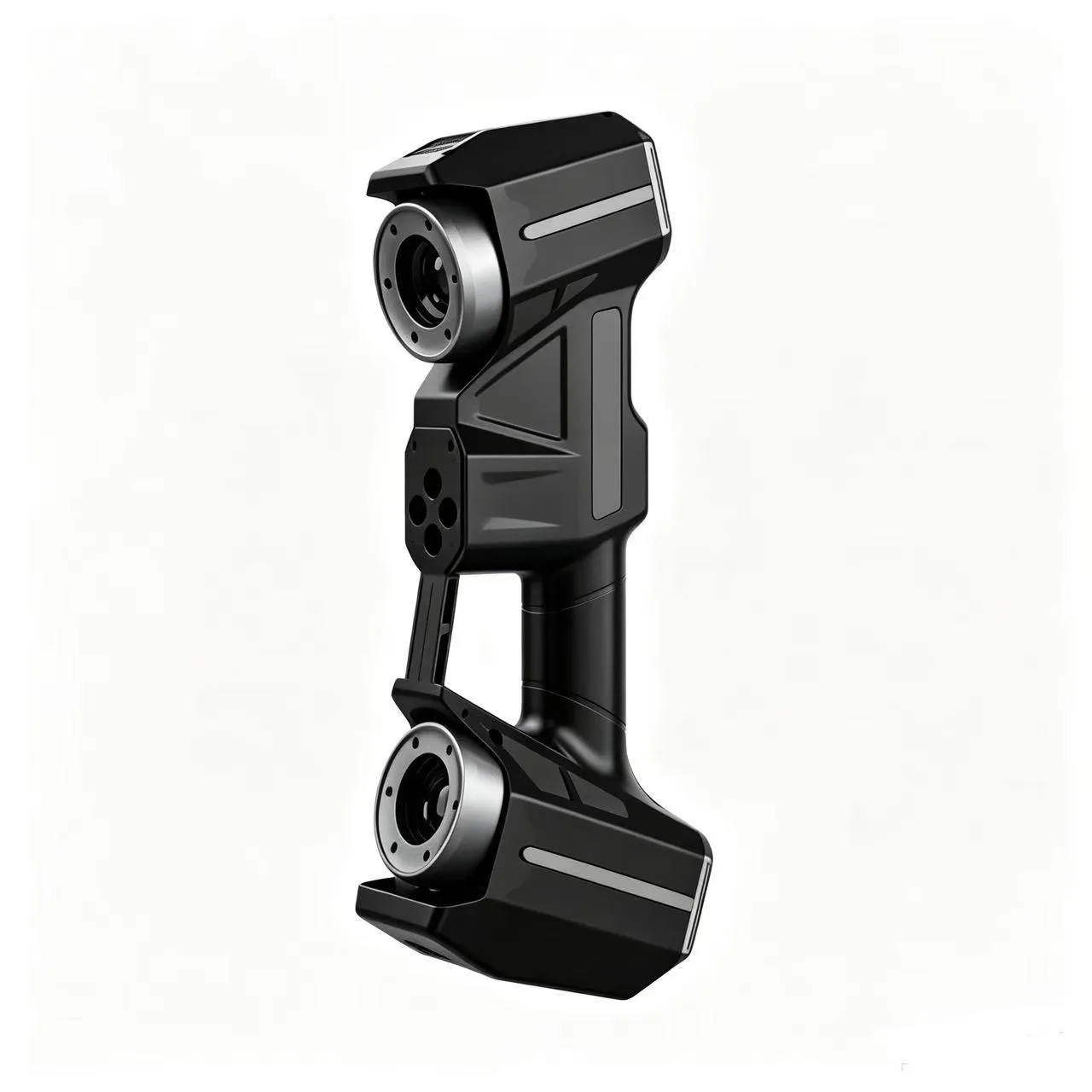

The AlphaScan Elite S1 is a metrology-grade handheld 3D scanner designed for high-precision industrial inspection, reverse engineering, and digital manufacturing. It offers multiple blue laser scanning modes—high-speed, fine detail, deep hole, and hole re-scan—to provide reliable support in capturing complex parts, deep holes, trimmed edges, and fine structures.

Features

50 crossed blue laser lines enable high-speed scanning with a maximum measurement rate of 8,100,000 measurements/second.
7 parallel blue laser lines for fine detail scanning; a single blue laser line for deep hole scanning.
Intelligent recognition of holes and trimmed edges, supporting hole re-scan to improve efficiency in capturing complex structures.
Accuracy up to 0.020 mm and resolution up to 0.01 mm.
Class II eye-safe laser, suitable for non-contact measurement on the manufacturing floor.

Optional Capabilities

Compatible with photogrammetry scale bars to enhance volumetric accuracy for large workpieces.
Supports STL, PLY, OBJ, TXT, and other formats for easy integration into inspection, modeling, and reverse engineering workflows.
Fine mode working distance up to 200 mm, ideal for local details and confined areas.

Typical Applications

Dimensional inspection of automotive parts, molds, castings, sheet metal, and precision mechanical components.
3D measurement and quality control of complex surfaces, deep holes, trimmed edges, and hole features.
Product development, reverse engineering, maintenance and replication, and digital archiving.
Industrial environments requiring efficient 3D data acquisition, including manufacturing floors and inspection labs.

Technical Specifications

Model	AlphaScan Elite S1
High-speed scanning	50 crossed blue laser lines
Fine scanning	7 parallel blue laser lines
Deep hole scanning	1 single blue laser line
Hole re-scan	Intelligent recognition of holes and trimmed edges
Accuracy (max)	0.020 mm
Measurement rate (max)	8,100,000 measurements/sec
Scan area	650 mm × 550 mm
Laser class	Class II (eye-safe)
Resolution	Up to 0.01 mm
Volumetric accuracy	0.015 mm + 0.035 mm/m; with photogrammetry scale bar: 0.015 mm + 0.025 mm/m
Working distance	300 mm (fine mode: 200 mm)
Depth of field	550 mm
Output formats	STL, PLY, OBJ, TXT, etc.
Operating temperature	−10 °C to 40 °C
Dimensions	340 × 140 × 75 mm
Weight	1.07 kg
Interface	USB 3.2 recommended
Recommended PC configuration	Windows 10 or later (64-bit); NVIDIA RTX series GPU (e.g., RTX 4060 or higher); 8 GB+ VRAM; Intel Core i7-13700H or higher; 32 GB+ RAM
