Laser Tracking 3D digitization System

Item No.V-Track

Get a Quote

Quote within 12hQuick delivery

Save to favoritesView wishlist

Description

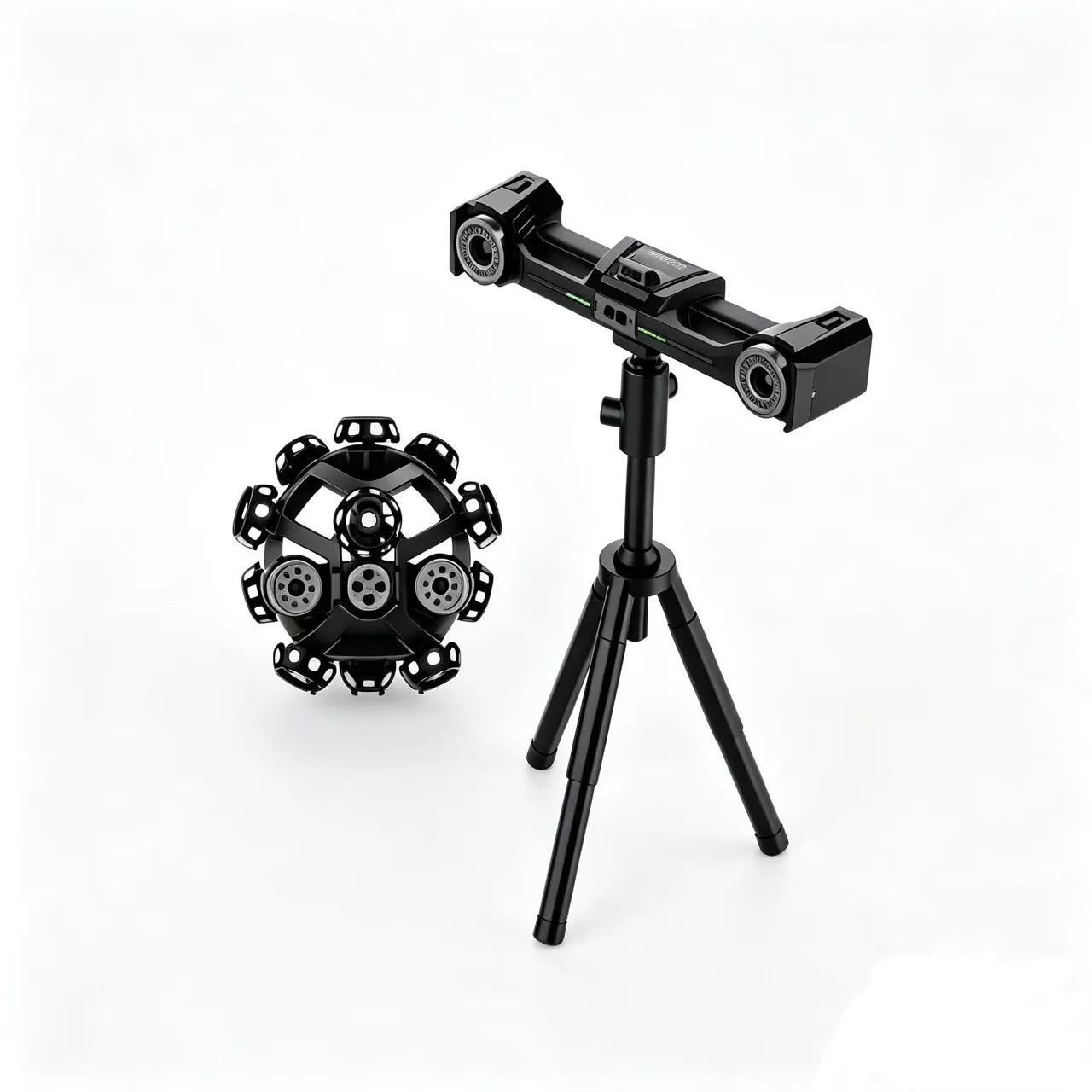

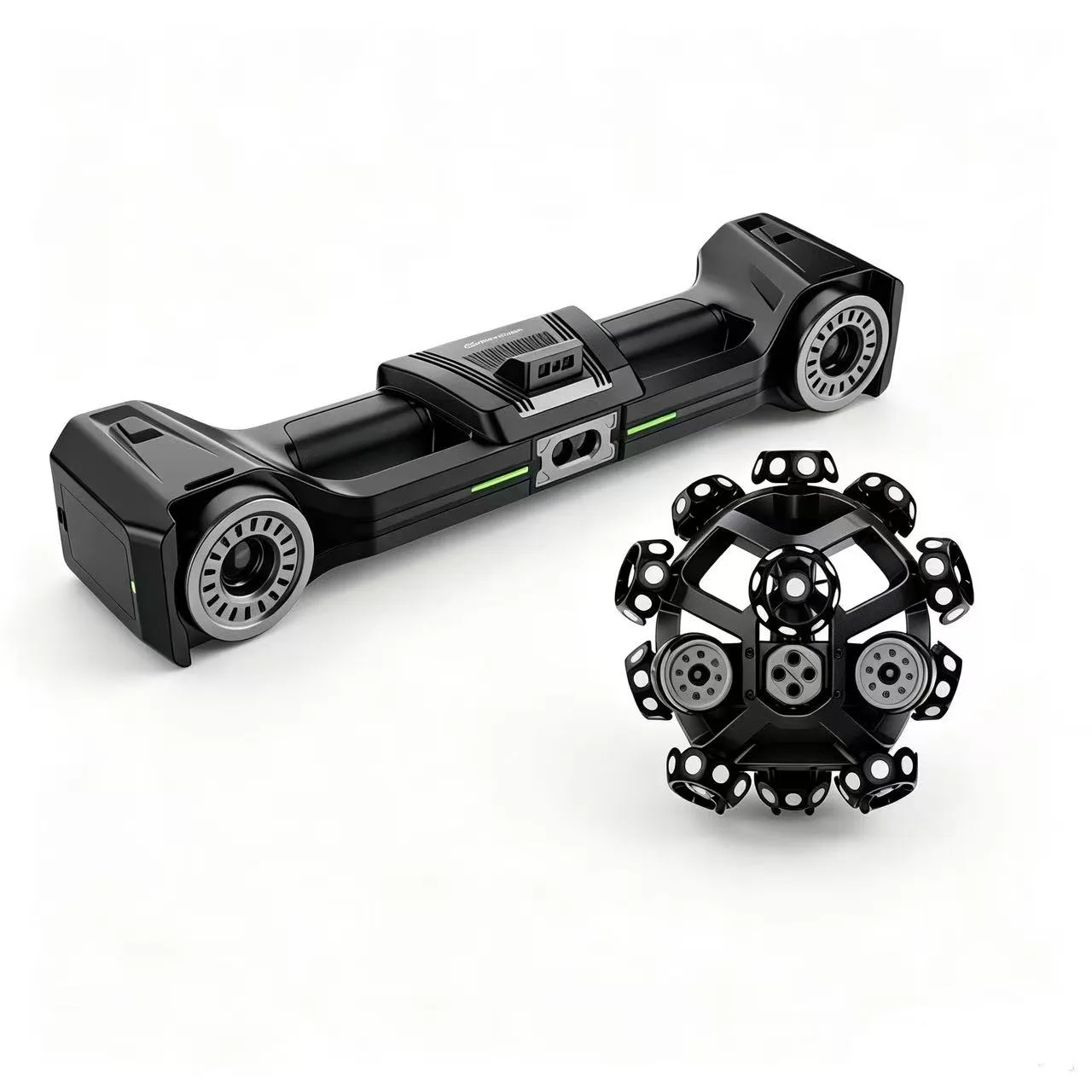

The V-Track wireless tracking 3D scanner is designed for high-precision 3D measurement and digitization of large-scale workpieces. The system integrates blue laser scanning, wireless tracking, and large-area photogrammetry capabilities, enabling marker-free and cable-free data acquisition on-site. It is suitable for industrial quality inspection, reverse engineering, and assembly analysis.

Features

Scanner and tracker can work collaboratively or independently to accommodate various workpiece sizes and field measurement tasks.
Lightweight carbon fiber body ensures portability, stability, and durability in industrial environments.
AI feature recognition assists in identifying holes, edges, and geometric features, improving scanning efficiency.
Face recognition access protection and user preset recall enhance data security.
Markerless wireless scanning reduces the constraints of target placement and cabling.
Combined with large-area photogrammetry technology, it reduces cumulative errors in large-scale measurements.

Optional Functions

Single scanner mode and wireless tracking mode can be switched according to application requirements.
Can be used with a photogrammetry system for higher volumetric accuracy over large areas.
Supports output in STL, PLY, IGS, ASC, and other formats, with customizable workflows per project.

Typical Applications

Large component inspection in automotive, aerospace, rail transit, and engineering machinery industries.
Dimensional inspection and deviation analysis of molds, fixtures, sheet metal, and castings.
On-site assembly measurement, first article inspection, and quality control.
Reverse engineering, digital archiving, and repair measurement of large workpieces.

Technical Specifications

Item	Specification
Model	V-Track
High-speed scanning	50 crossed blue laser lines
Fine scanning	7 parallel blue laser lines
Deep hole scanning	1 blue laser line
Tracker scanning	50 crossed blue laser lines
Total laser lines	108
Accuracy	Up to 0.020 mm (single scanner); up to 0.025 mm (tracking mode)
Max scan rate	7,100,000 measurements/sec
Max scan area	1100 × 800 mm (single scanner); 2600 × 2200 mm (tracking mode)
Laser class	Class II (eye-safe)
Data security	Face recognition
Min resolution	0.010 mm
Volumetric accuracy	0.060 mm (10.0 m³ / 3.2 m); 0.083 mm (25.0 m³ / 4.2 m); 0.105 mm (37.0 m³ / 5.2 m)
Volumetric accuracy with photogrammetry	0.044 mm + 0.012 mm/m
Recommended object size	10–8000 mm
Stand-off distance	300 mm
Depth of field	650 mm (single scanner); 2300 mm (tracking mode)
Output formats	STL, PLY, IGS, ASC, etc., customizable
Operating temperature	-10–40 °C
Connectivity	Wired Ethernet, wireless Wi-Fi 6.0
