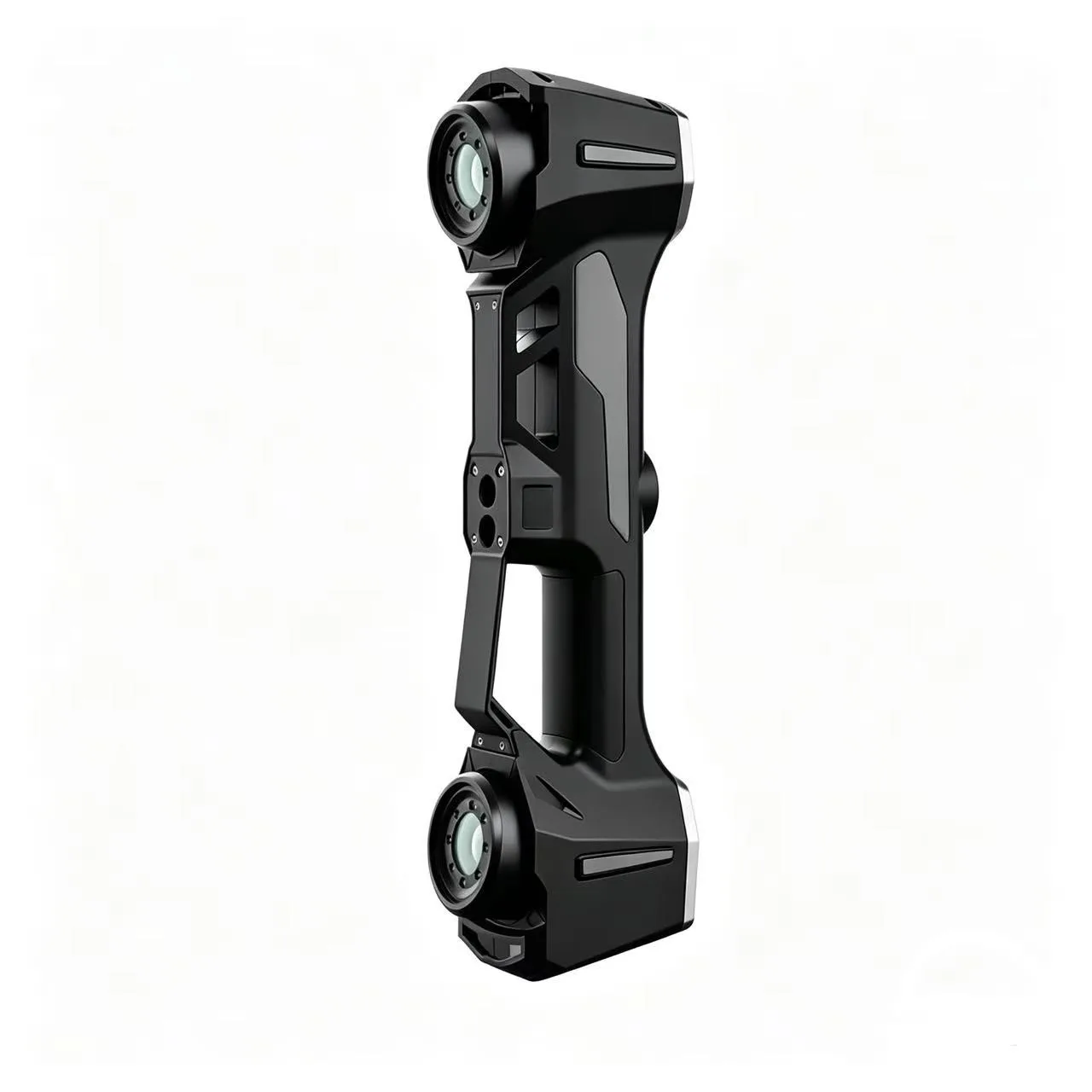

AlphaVista 50-line blue light 3D scanner
Quote within 12hQuick delivery
Save to favoritesView wishlist
Description
The AlphaVista 50-line blue light 3D scanner is a high-efficiency 3D digitization device designed for industrial inspection, reverse engineering, and dimensional measurement. Utilizing 50-line blue laser technology, it enables fast, large-area 3D data acquisition, suitable for non-contact measurement of various materials and complex curved surfaces.
Key Features
- Equipped with 50-line blue laser, achieving a maximum measurement rate of 7,100,000 points per second.
- Maximum scanning area up to 2200 mm × 2200 mm, ideal for rapid capture of medium to large workpieces.
- High precision up to 0.073 mm, with volumetric accuracy of 0.1 mm + 0.015 mm/m.
- Resolution up to 0.5 mm, supporting cross-scanning mode to balance efficiency and data completeness.
- Class II eye-safe laser, ensuring safe operation in industrial environments.
Optional Configurations
- Selectable working ranges (near, medium, or far) based on workpiece size and site conditions.
- Compatible with 3D inspection, reverse modeling, and reporting software workflows.
- Customizable positioning, auxiliary measurement, and data processing solutions for specific project needs.
Typical Applications
- Dimensional inspection of automotive parts, molds, castings, and sheet metal components.
- 3D measurement and quality control of machinery, fixtures, and large components.
- Reverse engineering and digital archiving for product design, modification, and maintenance.
- First article inspection, in-process inspection, and assembly deviation analysis on production lines.
Technical Specifications
| Item | Specification |
|---|---|
| Model | AlphaVista |
| Measurement Rate | 7,100,000 points/second |
| Light Source | 50-line blue laser |
| Laser Class | Class II (eye-safe) |
| Resolution | Up to 0.5 mm |
| Accuracy | Up to 0.073 mm |
| Volumetric Accuracy | 0.1 mm + 0.015 mm/m |
| Max Scanning Area | 2200 mm × 2200 mm |
| Working Distance (Near) | 400–900 mm |
| Working Distance (Medium) | 900–1800 mm |
| Working Distance (Far) | 1800–2500 mm |
| Scanning Mode | Cross-scanning |
| Weight | 1.38 kg |
| Dimensions (L × W × H) | 430 × 135 × 90 mm |
Related Products

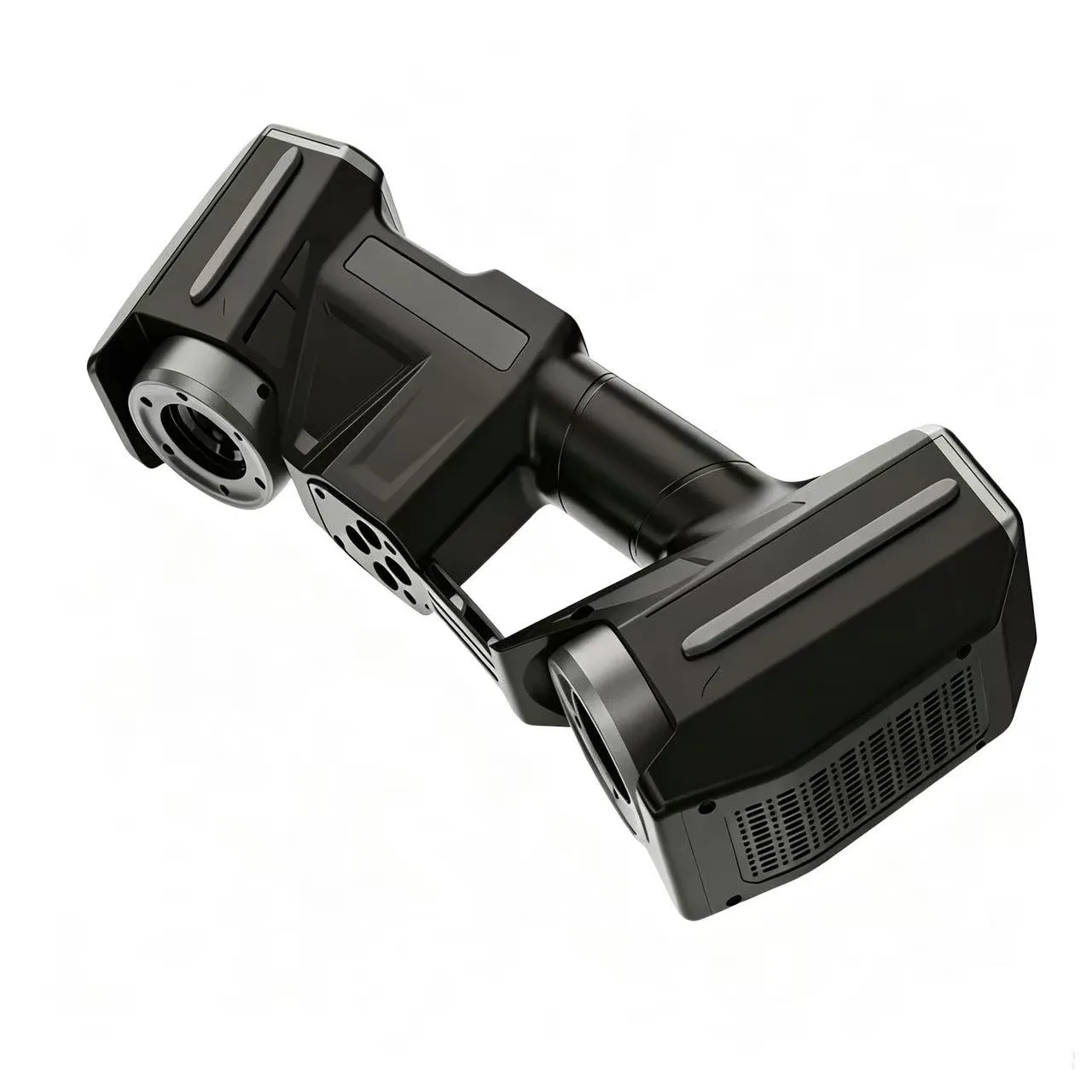

Betascan metrology-grade handheld 3D scanner
Item No.BetaScanAlphaScan Laser 3D Scanner

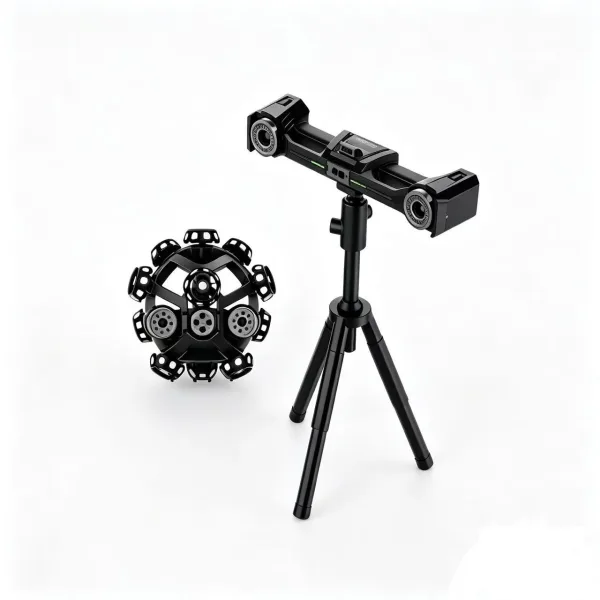

Item No.AlphaScanLaser Tracking 3D digitization System

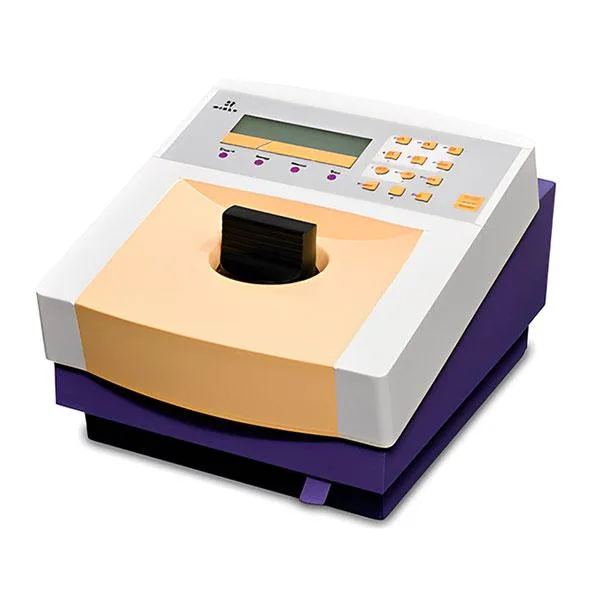

Item No.V-TrackTriathler Multilabel Tester
