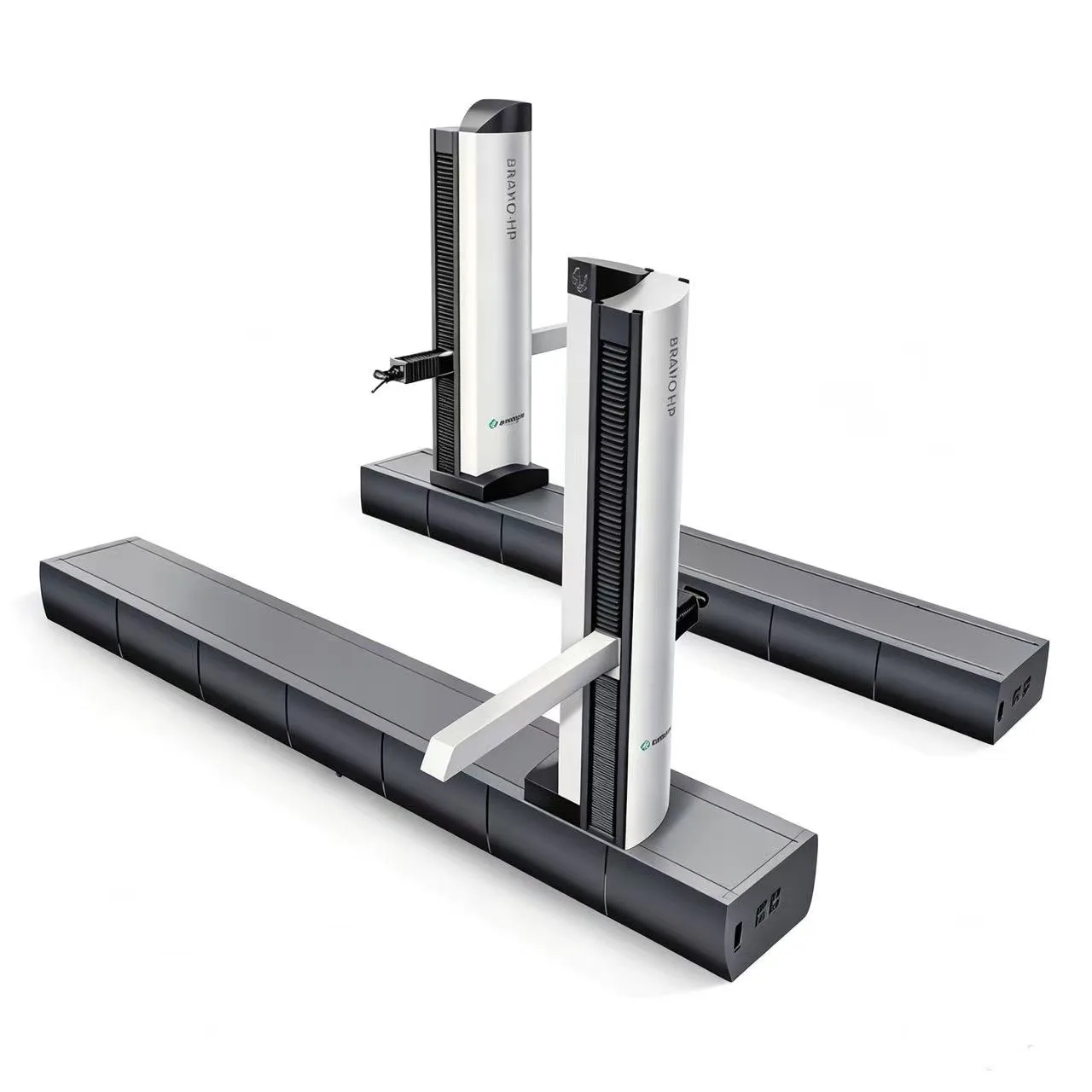

BRAVO HP High-end Cantilever CMM

The BRAVO HP series represents the perfect combination of ultra-high precision and ultra-high speed, specifically engineered for demanding automotive manufacturing environments. Widely adopted by leading automakers such as Volkswagen, Toyota, GM, Ford, Honda, and Fiat, these horizontal-arm coordinate measuring machines deliver exceptional performance even in wide temperature ranges.

Seamless Integration into Production

The BRAVO HP series features an open control system and software platform, enabling easy integration into your production line. Its ground-based installation ensures that the measuring unit can be effectively incorporated into the manufacturing environment. With HEXAGON's team of experienced system engineers and project managers, we support you through every stage of automotive production—from prototyping and stamping to matching, pre-series, and full-scale manufacturing.

Three Variants for Diverse Needs

BRAVO HP is available in three distinct models—BRAVO HP Clima,BRAVO HP Active, andBRAVO HP Ultra—each designed to meet specific measurement requirements under varying conditions.

Enhanced Accuracy and Efficiency

1. Advanced Mechanical Structure and Control

Environmental vibration is a critical factor affecting CMM performance. Proper installation must maintain geometric rigidity between the measurement system and the machine components while isolating external vibrations. The BRAVO HP's high-rigidity X-base ensures that the machine retains its original performance from the day it is installed.

The control system of BRAVO HP features unique flying characteristics that significantly boost inspection efficiency.

2. Precise Temperature Compensation Technology

Ambient temperature is another major influence on measurement accuracy. While building a temperature-controlled room is a common solution, it is often costly—especially for large measuring machines. BRAVO HP is designed to deliver high efficiency in most workshop environments without the need for a dedicated measuring room. Leveraging years of experience in industrial measurement, we provide professional technical solutions that adapt to your environment.

CLIMA Dynamic Compensation

The CLIMA dynamic compensation technology is based on an arithmetic model of the mechanical structure, enabling structural temperature compensation. This approach not only accounts for linear expansion of materials but also addresses complex structural deformations of the machine. With CLIMA technology, the measuring machine can maintain accuracy across a wide temperature range, ensuring reliable results even in fluctuating shop-floor conditions.

Key Features at a Glance

Ultra-high precision and speed for demanding automotive applications
Open control system and software platform for flexible integration
Ground-based installation for direct production line integration
High-rigidity X-base for long-term stability
Unique flying characteristics for enhanced inspection efficiency
CLIMA dynamic temperature compensation for accuracy in wide temperature ranges
Three variants (Clima, Active, Ultra) to suit different requirementsKey Features at a Glance
