DELTA SLANT High-Precision Gantry CMM

Item No.DELTA SLANT

Get a Quote

Quote within 12hFactory direct

Save to favoritesView wishlist

Description

For over 40 years, Hexagon has been the market leader in gantry coordinate measuring machines. The gantry structure is an ideal solution for various measuring applications such as large automotive and aerospace components, heavy transportation, communication, and satellite equipment. Integrated transport systems for easy loading and unloading, large measuring volume, and superior dynamic and accuracy performance are the leading advantages of Hexagon gantry measuring products.

Ideal solution for large precision component inspection

The DELTA SLANT large gantry measuring machine offers high cost-effectiveness, efficiency, and accuracy, with reliable operation and low maintenance costs, suitable for open workshop environments. Advanced mechanical structure, dual readheads on the main guideways, high-performance and high-stiffness silicon carbide Z-axis, and certified high-resolution scale system make DELTA SLANT an ideal solution for inspection and digitization of large precision components.

The DELTA SLANT large gantry measuring machine features a gantry structure designed for inspection of high-precision mechanical components. The X-axis beam utilizes ultra-high rigidity precision triangular beam technology, which reduces moving mass to enhance overall performance, ensuring stability and rigidity. Advanced 26-parameter geometric error compensation, with optional Shop Floor kit, allows the machine to operate in a wider temperature range (16-26°C) and harsh workshop environments.

Technical Features

01 Dual scale technology provides high accuracy

02 Y-axis beam uses "slant bridge technology" for high rigidity

03 Each axis driven by DC servo motors

04 High strength, low weight silicon carbide Z-axis material (Performance)

05 Covers and bellows protect the machine from external dust interference

Specifications

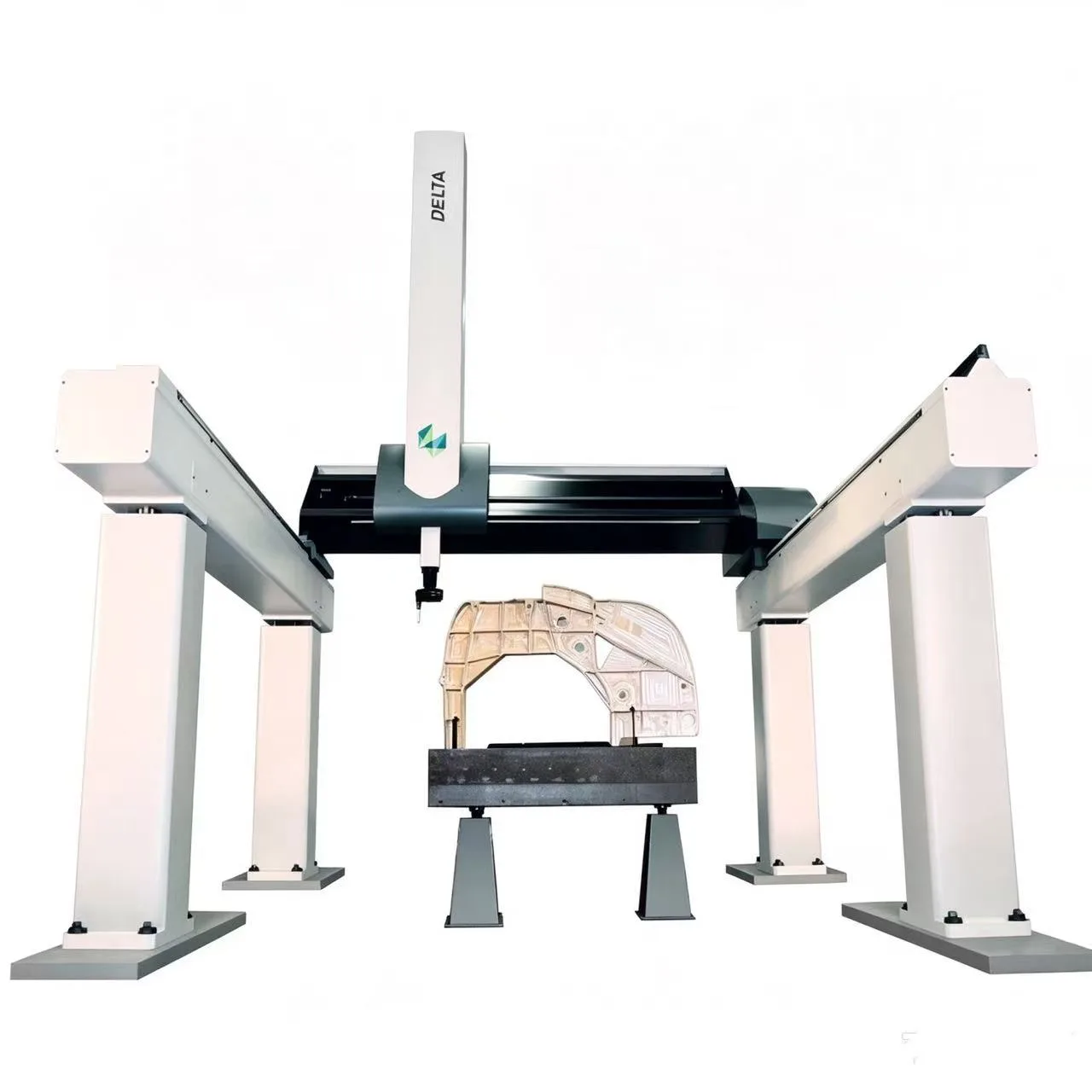

DELTA SLANT High-Precision Gantry CMM measuring a large component
